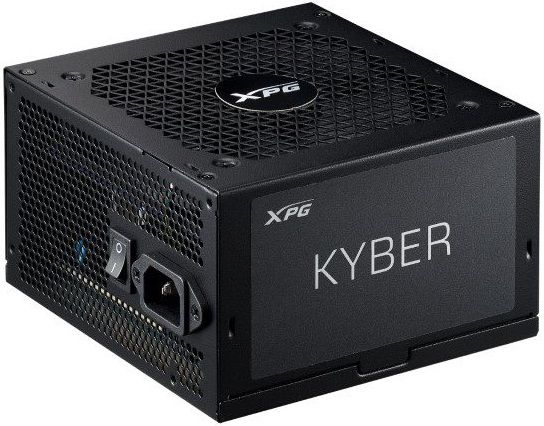

XPG KYBER 750W 80 Plus Gold Gaming Power Supply

Dimensions (L x W x H)

140 x 150 x 86  mm

Cybenetics Rating

850W: PLATINUM
750W/650W: GOLD

80 Plus Rating

GOLD

ATX Version

850W /750W : ATX 12V 3.0
650W : ATX 12V 2.4

Protections

OVP / OPP / SCP / OCP / UVP / OTP / NLO / SIP

Certification

CB/TUV/cTUVus/CE+UKCA/FCC+IC/LVD+UKCA/BSMI/RCM/BIS/EAC+ROHS/S-MARK/NOM

PFC

>0.99

Input Voltage

100V-240V

Input Current

850W : 12A
750W : 10A
650W :10A

Input Frequency

47 – 63 Hz

DC Output Voltage

+5V | +3.3V | +12V | -12V | +5Vsb

Total Output

850W /750W /650W

Power Excursion

850W: 1700W (*up to 200% of the PSU’s rated power for 100μs)
750W: 1500W (*up to 200% of the PSU’s rated power for 100μs)
650W: 1300W (*up to 200% of the PSU’s rated power for 100μs)

Operating Temperature

40 °C

Fan Size

120 x 120 x 25mm

Fan Bearing

FDB

Fan Speed

2400

MTBF

100,000 hours

ATX 24 Pin Connector

1

EPS 8 Pin Connector

2

PCI-E 6+2 Pin Connector

850W : 2
750W : 2
650W : 2

Molex 4 Pin Connector

850W : 2
750W : 2
650W : 2

12VHPWR (12 + 4) Connector (600W)

850W : 1
750W : 1
650W : 0

SATA Connector

850W : 6
750W : 6
650W : 6

Weight

850W : 2.032Kg
750W :2.024Kg
650W :1.768Kg
