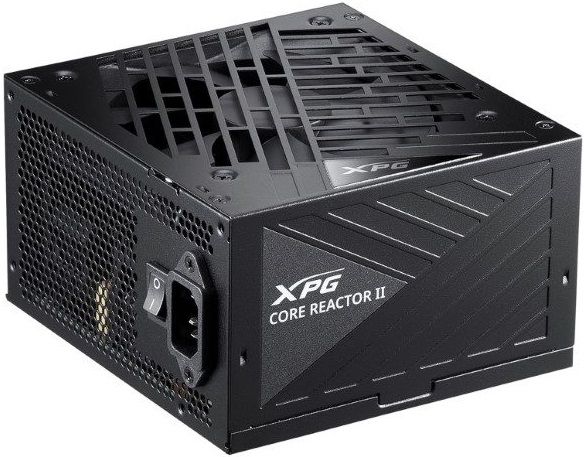

XPG CORE REACTOR II 1000W 80 Plus Gold Fully Modular Power Supply

Dimensions (L x W x H)

650W-850W: 140 x 150 x 86mm

1000W-1200W: 160 x 150 x 86mm

80 Plus Rating

GOLD

ATX Version

ATX 12V v3.0 and EPS v2.92

Protections

OCP | OVP | OPP | OTP | UVP | SCP | NLO | SIP

Certification

CE | CB| FCC(IC) | TUV | cTUVus | TUV S-Mark | NOM | BSMI | UKCA | EAC | CCC | RCM

PFC

> 0.99

Input Voltage

100-240V

Input Current

1200W: 15A

1000W: 13A

850W: 12A

750W: 10A

650W: 10A

Input Frequency

650/750/850W:47Hz-63Hz

1000/1200W:50Hz-60Hz

DC Output Voltage

+5V | +3.3V | +12V | -12V | +5Vsb

Total Output

1200W: +5V/+3.3V :22A, +12V:100A, -12V:0.3A, +5Vsb:3A

1000W: +5V/+3.3V :22A, +12V:83.5A, -12V:0.3A, +5Vsb:3A

850W: +5V/+3.3V :22A, +12V:70.8A, -12V:0.3A, +5Vsb:3A

750W: +5V/+3.3V :22A, +12V:62.5A, -12V:0.3A, +5Vsb:3A

650W: +5V/+3.3V :20A, +12V:54.1A, -12V:0.3A, +5Vsb:3A

Power Excursion

1200W: 2820W(*up to 235% of the PSU’s rated power for 100μs)

1000W: 2350W(*up to 235% of the PSU’s rated power for 100μs)

850W: 1997W (*up to 235% of the PSU’s rated power for 100μs)

750W: 1762W (*up to 235% of the PSU’s rated power for 100μs)

650W: 1527W(*up to 235% of the PSU’s rated power for 100μs)

Operating Temperature

50°C

Fan Size

650W-850W: 120mm FDB Fan

1000W-1200W: 135mm FDB Fan

Fan Bearing

FDB (Fluid Dynamic Bearing)

Fan Speed

2400 RPM

MTBF

100K hours at full load

ATX 24 Pin Connector

1200W/1000W:1

850W/750W/650W:1

EPS 8 Pin Connector

1200W/1000W:2

850W/750W/650W:2

PCI-E 6+2 Pin Connector

1200W/1000W:8

850W/750W:6

650W:4

Molex 4 Pin Connector

1200W/1000W:3

850W/750W/650W:4

12VHPWR (12 + 4) Connector (600W)

1200W/1000W:1

850W/750W/650W:1

SATA Connector

1200W/1000W:9

850W/750W/650W:8

Weight

1200W/1000W:

Product+cables：1.77kg+1.28kg

with Package:3.43kg

850W/750W:

Product+cables：1596g+1254g

with Package:3.1kg

650W

Product+cables：1299g+1231g

with Package:2.78kg
