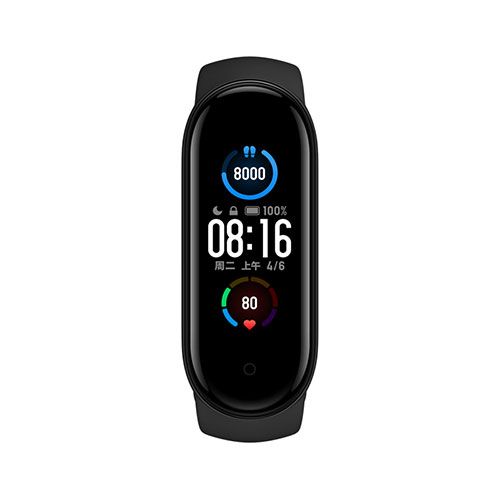

Mi Band 5 Global

• Large dynamic color-display

  Dynamic display with more than 65 dial themes

• 11 sports modes

  Rowing machine, jump rope, yoga, elliptical

• 50 m water resistance*

  Wear when showering or swimming

• All-new women's health tracking

  Menstrual cycle tracking and notifications

• 24-hour heart rate monitoring

  Real-time monitoring with heart rate alerts

• 24-hour sleep monitoring

  Rapid eye movement (REM), naps

• 14-day extra-long battery life

  Battery-saver mode for extended battery life

• Magnetic charging

  Removal-free, direct charging

Large 1.1" dynamic color-display Everything on one screen

Approximately 20% further increase in display area* makes incoming calls, messages and alerts easier to see and ushers in a new era of dynamic dials.

+20%

Approximate display area

*Comes with the black strap as standard, other colors purchased separately.

Six straps in refreshing colors There’s one for you too

Which is your favorite? Vibrant yellow or light green? As many as six colors, to freshen up your summer wardrobe. *Comes with the black strap as standard, other colors purchased separately.

Yellow

Teal

Navy Blue

Mint Green

Orange

Black

Designed for both indoor and outdoor exercise Reignite your「 weight loss 」

11 professional sports modes The more you move, the more weight you lose

Supports Yoga, rowing machine, jump rope and more for the first time, accurately monitoring and analyzing every move you make. Monitors and analyzes your heart rate, pace and calories burned to help you reach your weight loss goals.

Rowing machine

Elliptical

Yoga

Outdoor running

Outdoor cycling

Pool swimming

Indoor cycling

Jump rope

Treadmill

Power walking

Freestyle

Fat-burning rowing machine mode Train 80% of your muscle groups at once

Want to burn body fat fast? This exercise trains almost all of your muscle groups at the same time and accurately records drive time, recovery time and strokes per minute, helping to burn fat fast.

Drive time

Recovery time

Strokes per minute

Elliptical mode

Burns fat with minimal impact

The ideal fat-burning choice for those carrying extra pounds that strengthens your lower limbs while minimizing the impact on your knees. Increase the resistance and let’s get going!

•
•
•
•

Fully monitor your heart rate, sleep and physical state Reignite your「 health 」

24-hour smart heart rate monitoring Notice anything out of the ordinary

Comprehensive upgrades to algorithms and hardware* have improved monitoring accuracy by up to 50% for forms of exercise with irregular movements such as cross country running, climbing, hiking and so on. Comes vibrating reminders when your heart rate is unusually high.

PPG biosensors

Up to 50% increased accuracy

Heart rate alerts

Vibrating reminders when heart rate is too high Example of all-day heart rate monitoring

During high intensity exercise

145bpm

Unusually high heart rate

175bpm

Everyday state

79bpm

During sleep

65bpm

* Chart is for illustrative purposes only and is not of the actual display.

24-hour sleep monitoring It’s easy to get a good night’s sleep

Upgrades to sleep analysis technology have boosted accuracy by another 40%*, allowing for professional interpretation of your sleeping patterns, And offers scientific advice to help you quickly improve sleep issues such as insomnia.

Rapid eye movement (REM)

An important sleep stage that allows the body to recover

Naps

Record the quality of naps

Three health modes Helping you to improve your health

Personal activity intelligence

The personal vitality index is calculated using sex, age, heart rate and other data, and gives suggestions for activities that may improve your score.

Stress monitoring

Keeps track of your stress levels and gives suggestions for easing and recovering from stress.

Breathing exercises

Quickly ease your body and mind with a guided breathing exercise of 1–5 minutes’ duration, following the breathing patterns shown on the display.

All-new women's health tracking for recording and reminding during the monthly cycle

Records the menstrual cycle and ovulation phases and gives useful reminders beforehand. The more you use it, the more it understands you.

Mi Fit app, daily health data at your fingertips

Unusual heart rates, sport distances, sleeping issues are individually recorded.

All-new magnetic charging makes charging a ‘snap’

14days

Battery life in normal mode*

20days

Battery life in power-saving mode*

Snap photos remotely with a single click

Taking selfies and group photos just got easier

More useful features

Music playback

Find my phone

Phone muting

Do not disturb

Phone unlocking

Incoming call notification

Countdown timer

Calendar reminder

Event reminder

Message alerts

Idle alerts

Weather forecast

Notes:

* Approximately 20% increase in display area: The display area of the Mi Smart Band 5 is approximately 20% larger than that of Mi Smart Band 4. Data obtained from Huami Labs.

* Custom dials: Some dials support the display of custom content, allowing you to display your favorite or most-used features on the dial according to your needs;

*Up to 50% increase in heart rate monitoring accuracy: Based on comparative tests with the Mi Smart Band 4 that showed increased accuracy for forms of exercise with irregular movements such as cross country running, climbing, hiking and so on. Test data obtained from Huami Labs;

* 50 m water resistance: The 50 m water resistance is based on standard GB/T 30106-2013 and has been tested by the China National Horological Quality Supervision and Testing Center. Water resistance report numbers: Mi Smart Band 5: QT2003010. The water resistance rating is 5 ATM (equivalent to a depth of 50 m under water), allowing the device to be worn while showering and swimming, but not in saunas or when diving;

*Personal vitality index: This refers to the band’s Personal Activity Intelligence (PAI) vitality index; a new, innovative system that converts your heart rate data into a personalized score that indicates the level of activity required in order to maintain good health;

*Conditions for testing Mi Smart Band 5 14-day battery life in normal mode are as follows: fully charged; automatic heart rate monitoring activated for 30 minutes; lift-wrist-to-wake function activated; all other settings set to factory defaults; 100 notifications received and displayed per day; 2 alarms per day, each with 5 seconds of vibration; 100 activations of the lift-wrist-to-wake function; syncing data with the app once per day;

*Conditions for testing Mi Smart Band 5 20-day battery life in power-saving mode are as follows: fully charged; automatic heart rate monitoring disabled; sleep monitoring disabled; lift-wrist-to-wake function disabled; 100 notifications received and displayed per day; 2 alarms per day, each with 5 seconds of vibration; 10 taps of the touch button per day to display the time; syncing with the app once per day;

*All battery life test data has been obtained from Huami Labs. Various factors can influence battery life such as settings used, the way the device is operated, environmental conditions and so on, all of which may result in battery life in actual use differing from that found in lab data;

*All images used are for illustrative purposes solely to demonstrate the functionality of the product and are not fully representative of the product itself.

Specifications

Screen

1.1"AMOLED Screen

Screen Resolution: 126 x 294
Screen color: 16 bit
Screen backlight: maximum brightness ≥450nit, adjustable brightness
Screen buttons: 1 touch button (wake up, return)

Sensor

High-precision six-axis sensor + PPG heart rate sensor

Six-axis sensor: low-power three-axis acceleration sensor + three-axis gyroscope
PPG heart rate sensor (in which the infrared detection function is only supported by the NFC version)
Digital Silicon Wheat (only supported by NFC version)

Endurance

14 days long battery life, magnetic charging

Charging method: magnetic charging
Charging time: <2 hours
Endurance: ≥14 days

Movement

11 professional sports modes

Support sports types: outdoor running, walking, cycling, indoor running, pool swimming,
exercise, Indoor cycling, elliptical machine, skipping rope, yoga, rowing machine.
Supports running, walking automatic detection, speed reminder, whole kilometer reminder, high heart rate reminder.

Health

24-hour heart rate sleep monitoring + female health

Heart rate monitoring: infrared detection heart rate (only supported by NFC version), all-day heart rate,
manual heart rate, Resting heart rate, heart rate curve.
Sleep monitoring: deep sleep, light sleep, REM rapid eye movement, sporadic naps
Stress monitoring, breathing training, PAI vitality index evaluation,
sedentary reminder, step recording & goal setting.

Other Functions

Take pictures remotely, play music, find phone, mute phone, unlock phone, unlock notebook, call reminder, do not disturb mode, WeChat reminder, APP message reminder, calendar reminder, event reminder, weather forecast, timer, countdown, alarm clock, Bluetooth broadcast , Online dial, custom dial, preset dial, screen lock, charging progress display, choice of wearing method, OTA upgrade.

Specification

Product model

XMSH10HM

Net weight

11.9g

Body size

47.2 x 18.5x 12.4mm

Waterproof level

5ATM

Connectivity

Bluetooth 5.0 BLE version

Vibration motor

Rotor motor

RAM

512KB

Flash memory

16MB

Length

155-219mm

Battery capacity

125mAh

Battery type

Lithium ion polymer battery

Wristband material

TPU

Wrist buckle material

Aluminum alloy

Cover plate material

2.5D tempered glass + AF coating

Shell material

PC plastic

Working temperature

0°C~45°C

Language support

English, Chinese Simplified, Traditional (Hong Kong/Taiwan)

OS Support

Android 5.0 or iOS 10.0 and above

Package Contents

Standard Edition

Mi Band 5 (Tracker) × 1Wristband (Black) × 1Charging Cable × 1Instruction Manual × 1
