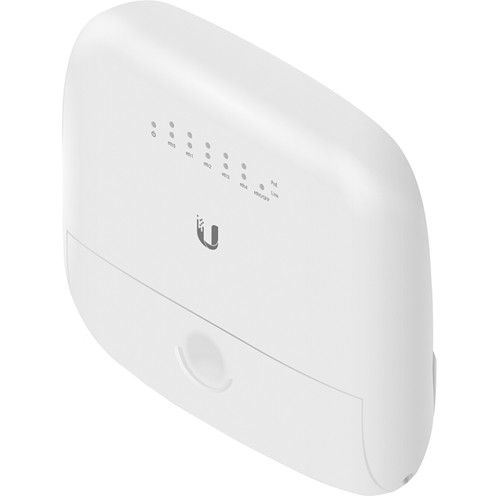

Ubiquiti Networks EP-R6 EdgePoint WISP Gigabit Router
SKU
N77020
Category: Routers
Ubiquiti Networks EP-R6 Overview
The EP-R6 EdgePoint WISP Gigabit Router from Ubiquiti is designed to simplify your hardware by replacing the networking cabinet, which usually contains a patch panel, power rack, multiple PoE adapters, switch, router, modem, and more. It is encased in a polycarbonate shell with UV resistance and features a combination of robust routing performance, fiber backhaul capability, and the convenience of passive PoE support. With the EP-R6, you'll have access to a total of six ports: five 10/100/1000 RJ45 ports with 24V / 0.7A passive PoE, and one 1 Gbps SFP port. Furthermore, use the EdgePoint software, accessible via a network port and a web browser, to monitor and manage your network.
FiberProtect
The EdgePoint features FiberProtect to significantly reduce electrostatic discharge (ESD) failures and electromagnetic interference (EMI), greatly improve data signal integrity, and to consolidate the wired data backhaul to a single fiber cable run for long-distance connectivity.
WISP Control
Designed as a WISP control point, the EdgePoint combines the advanced routing capabilities of EdgeMAX with fiber backhaul and versatile powering capabilities.
All-in-One Design
A single compact controller eliminates clutter, expensive cabinets, extraneous installations, and excessive maintenance.
Advanced Routing Applications
Powerful routing features such as link balancing provide redundancy and increased performance for outdoor wireless links.
Versatile Power Options
Powered by 24 VDC or by PoE, the EP-R6 can support 24 V passive PoE to power most Ubiquiti products.
Intuitive User Interface
The EdgePoint features a graphical user interface designed for convenient setup and control. Accessed via a network port and web browser, the user-friendly interface provides intuitive management with a virtual view of the ports, displaying physical connectivity, speed, and status.
Routing Configuration
VLAN interfaces for network segmentation
Static routes and support of routing protocols: OSPF, RIP, and BGP
Firewall policies and NAT rules
Application identification with Deep Packet Inspection (DPI)
DHCP services
Quality of Service (QoS)
Network administration and monitoring tools
Administrator and operator accounts
Comprehensive IPv6 support
Static routes and support of routing protocols: OSPF, RIP, and BGP
Firewall policies and NAT rules
Application identification with Deep Packet Inspection (DPI)
DHCP services
Quality of Service (QoS)
Network administration and monitoring tools
Administrator and operator accounts
Comprehensive IPv6 support
Ubiquiti Networks EP-R6
| Enclosure Material | Polycarbonate with UV Resistance |
| Ports | Data Ports: 5 x 10/100/1000 RJ45 Ports 1 x 1 Gbps SFP Port |
| Processor | Dual-Core 880 MHz, MIPS1004Kc |
| System Memory | 256 MB DDR3 1600 MHz RAM |
| Code Storage | 256 MB NAND |
| Button | Reset |
| Pole Mount | Yes |
Power
| Max Power Consumption | 7 W (Excludes PoE Output) |
| Power Input | 1 x DC Terminal Block or 1 x RJ45 (eth0) |
| Power Supply | Min. 24 V / 0.3 A (Excludes PoE Output Ports) |
| DC Input | 24 V, 3 A |
| Passive PoE | Input: 1 x 24V / 1.4A, 4-Pair (+1, 2, 4, 5; -3, 6, 7, 8) Passive PoE, eth0 (Do NOT configure eth0 in PoE output mode if you are using a PoE input power source.) |
| Passive PoE | Output: 5 x 24V / 0.7A, 2-Pair (+4, 5; -7, 8) Passive PoE, eth0 to eth4 |
| Monitoring | 1 x DC Terminal Block, Input Power 1 x RJ45, eth0, Input Power |
| Voltage Range | 26 to 16 VDC |
Environmental
| Operating Temperature | -40 to 149°F (-40 to 65°C) |
| Operating Humidity | 10 to 90% Noncondensing |
General
| Certifications | CE, FCC, IC |
| Dimensions | 7.43 x 6.97 x 1.96" (188.6 x 177.1 x 49.8 mm ) |
| Weight | 1.33 lbs (605 g) |
Packaging Info
| Package Weight | 2.63 lb |
| Box Dimensions (LxWxH) | 9.3 x 8.05 x 3.8" |
| Brand | Ubiquiti Networks |
|---|---|
| Warranty | Check at Delivery |
| Shipping | 5 - 10 Days |
