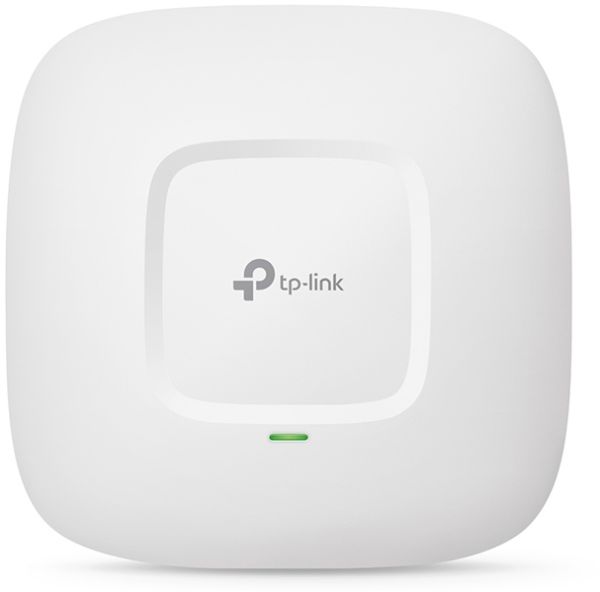

TP Link EAP115 - 300Mbps Wireless N Ceiling Mount Access Point
Free Auranet Controller Software enables administrators to easily manage hundreds of EAPs
The user-friendly Cluster Mode allows manage up to 24 (EAP115) without requiring any extra hardware or software
Supports Power over Ethernet (802.3af) for convenient and affordable installation
Simple mounting design for easy attachment to a wall or ceiling
Captive portal provides one convenient method of authentication for Wi-Fi guests
Enterprise class Wi-Fi security help to decrease network security threats
Multi-SSID divides multiple wireless networks for different user types
An Affordable, Scalable Business Wi-Fi Solution
300Mbps Wireless N Ceiling Mount Access Point
eap115
Build and manage a scalable Wi-Fi network for your business with the Auranet business class solution, tailored to handle the power of hundreds of TP-LINK EAPs at an affordable cost.
No Technicians Needed.
Auranet enables you to set up a centralized network management system without the need of any IT or setup fees.
Free Multi-Function Auranet Controller Software
Concurrently manage and monitor hundreds of Auranet EAPs in a
single location. Unlike most standard hardware controllers, the
TP-LINK EAP Controller Software doesn’t require any special training or added costs.
EAP Controller Software
Easy-to-use Cluster Mode
The user-friendly Cluster Mode allows you to manage up to 24 Auranet EAPs in your business network without requiring any extra hardware or software. Organize your network administration system by controlling multiple access points at a time with the same simplicity of a single home network router.
Distribute Wireless Settings
PoE Switch
Master EAP
Member EAP
Member EAP
Add member EAP
The captive portal provides customizable guest authentication settings for maximized user control. Administrators can easily set and adjust guest Wi-Fi settings by designing a unique authentication page, establishing a voucher system to limit the duration of use for each client, or creating "Operator" accounts, for permission to manage the guest network without having access to other EAP administrative features.
Patmo Saktis
Voucher Code
LOGIN
I accept the term of use
Easy Mount Design and PoE
Timesaving and Flexible Deployment
The Auranet EAP115 is designed for easy installation on any wall or ceiling. The Power over Ethernet (PoE) function allows your network cables to carry electrical power so you minimize on cable clutter. It’s one more hardwiring hassle you don’t have to worry about when operating your centralized management system.
The Auranet business Wi-Fi solution is engineered to handle heavy multi-user usage in large areas without encountering the
same stability issues found with standard routers and access points purposed for home use. It’s the perfect fit for motels,
salons, chain-stores, schools, and restaurants.
Motel
Café
Chain-store
School
| EAP330 | EAP320 | EAP220 | EAP120 | EAP115 | EAP110 | |
| Model | Auranet EAP330 | Auranet EAP320 | Auranet EAP220 | Auranet EAP120 | Auranet EAP115 | Auranet EAP110 |
| Product Name | AC1200 Wireless Dual Band Gigabit Access Point | AC1200 Wireless Dual Band Gigabit Access Point | N600 Wireless Dual Band Gigabit Access Point | 300Mbps Wireless N Gigabit Access Point | 300Mbps Wireless N Access Point | 300Mbps Wireless N Access Point |
| Wireless Throughput | 2.4GHz : 600Mbps 5GHz : 1300Mbps | 2.4GHz : 300Mbps 5GHz : 867Mbps | 2.4GHz : 300Mbps 5GHz : 300Mbps | 2.4GHz : 300Mbps | 2.4GHz : 300Mbps | 2.4GHz : 300Mbps |
| Ethernet Port | Gigabit Port*2 | Gigabit Port*1 | Gigabit Port*1 | Gigabit Port*1 | 10/100Mbps Port*1 | 10/100Mbps Port*1 |
| Internal Antennas | 2.4GHz:3*6dBi 5GHz: 3*7dBi | 2.4GHz:5dBi 5GHz: 2*7dBi | 2.4GHz:2*4dBi 5GHz: 2*4dBi | 2.4GHz:2*4dBi | 2.4GHz:2*3dBi | 2.4GHz:2*3dBi |
| PoE Mode | EEE 802.3at | EEE 802.3at | EEE 802.3at | EEE 802.3af | EEE 802.3af | Passive PoE |
| Auranet Controller | √ | √ | √ | √ | √ | √ |
| Cluster Mode | - | - | - | - | √ | - |
| Cpative Portal | √ | √ | √ | √ | √ | √ |
| Airtime Fairness | √ | √ | √ | - | - | - |
| Beamforming | √ | √ | √ | - | - | - |
| Band Steering | √ | √ | √ | - | - | - |
| Load Balance | √ | √ | √ | √ | √ | √ |
Features
EAP Controller Software enables administrators to easily manage hundreds of EAPs
Cluster management makes it easy to manage a small network by allowing up to 24 Auranet EAP115 units to act as a single cluster
Supports IEEE 802.3af PoE for convenient and affordable installation
Simple mounting design for easy attachment to a wall or ceiling
300Mbps wireless data rate for uninterrupted wireless connection
Captive portal provides one convenient method of authentication for Wi-Fi guests
Rate limit per SSID to restrict the bandwidth of each client
Access Control restricts sets limitations for client access to the specified network segment
Reboot Schedule enables all APs to automatically reboot within a specified time
WPA/WPA2-enterprise, 802.1X with RADIUS secure authentication and rogue access point detection ensure the security of WLAN network
Multi-SSID divides multiple wireless network for different user types
Load balance ensures large business networks with smooth a network experience
Compatible with 802.11 b/g/n products
QoS function prioritizes data, voice, and video to ensure time-sensitive applications take priority over all other traffic
Durable housing prevents dust from dropping onto the PCB through bypass louver to provide long-term, unhindered operation
Specifications
| HARDWARE FEATURES | |
|---|---|
| Interface | Fast Ethernet (RJ-45) Port *1（Support IEEE802.3af PoE） |
| Button | Reset |
| Power Supply | PoE or external 12VDC/1.0A power supply |
| Power Consumption | 5W |
| Wireless Standards | IEEE 802.11n, IEEE 802.11g, IEEE 802.11b |
| Dimensions ( W x D x H ) | 7.1 x 7.1 x 1.9 in. (180*180*47.5mm) |
| Antenna Type | Internal 2* 3dBi Omni |
| Mounting | Ceiling /Wall Mounting (Kits included) |
| Physical Security Lock | Kensington Lock Slot |
| Watch Dog | Yes |
| WIRELESS FEATURES | |
|---|---|
| Wireless Standards | IEEE 802.11n, IEEE 802.11g, IEEE 802.11b |
| Frequency | 2.4-2.4835GHz |
| Signal Rate | 11n: Up to 300Mbps(dynamic) 11g: Up to 54Mbps(dynamic) 11b: Up to 11Mbps(dynamic) |
| Reception Sensitivity | 300M: -71dBm@10% PER 150M: -75dBm@10% PER 54M: -78dBm@10% PER 11M: -93dBm@8% PER 6M: -92dBm@10% PER 1M: -96dBm@8% PER |
| Wireless Functions | Multiple SSIDs （Up to 8 SSIDs） Enable/Disable Wireless Radio Automatic Channel Assignment Transmit Power Control （Adjust Transmit Power on dBm） QoS(WMM) Rate Limit Reboot Schedule Wireless Schedule Wireless Statistics based on SSID/AP/Client |
| Wireless Security | Captive Portal Authentication Access Control Wireless Mac Address Filtering Wireless Isolation Between Clients SSID to VLAN Mapping Rogue AP Detection 802.1X Support 64/128/152-bit WEP / WPA / WPA2-Enterprise,WPA-PSK / WPA2-PSK |
| Transmission Power | CE: <20dBm FCC: <26dBm |
| MANAGEMENT | |
|---|---|
| Auranet Controller Software | Yes |
| Cluster Mode | Yes |
| EAP Controller Software | |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1,v2c |
| System Logging Local/Remote Syslog | Local/Remote Syslog |
| Telnet | Yes |
| Web-based Management | HTTP/HTTPS |
| Management VLAN | Yes |
| OTHERS | |
|---|---|
| Certification | CE, FCC, RoHS |
| Package Contents | 300Mbps Wireless N Ceiling Mount Access Point EAP115 Power Adapter Mounting Kits, Installation Guide |
| System Requirements | Microsoft Windows 10/8/7/Vista/XP |
| Environment | Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
| Brand | TP Link |
|---|---|
| Warranty | 7 Day Replacement |
| Shipping | Same Day From Lahore |
