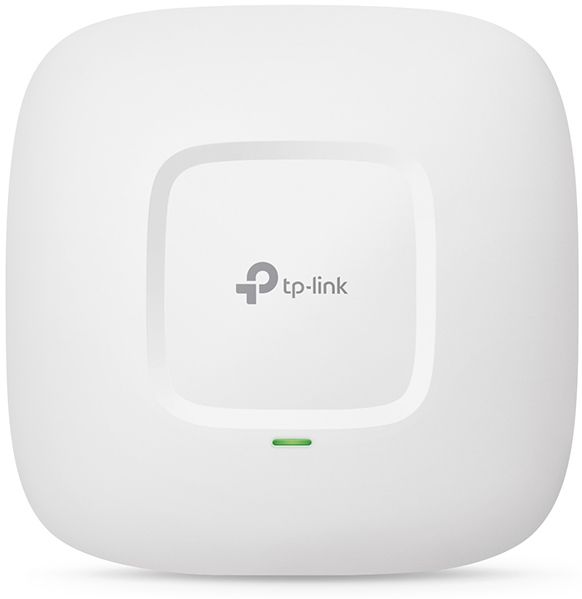

TP Link EAP110 - 300Mbps Wireless N Ceiling Mount Access Point
Supports passive PoE for convenient installation up to 100meters
Ceiling mounting design with chassis make it easy to deploy on a wall or ceiling
Captive portal provides one convenient method of authentication for Wi-Fi guests
Multi-SSID divides multiple wireless networks for different users
Enterprise class Wi-Fi security help to decrease network security threats
Flexible Placement
Easy mounting design & PoE
The EAP’s “ceiling lamp” appearance and easy mounting design with chassis make it easy to be integrated seamlessly into any wall or ceiling surface to blend in with most interior decorations. EAP110 support Passive PoE to make deployment effortless and flexible.
Passive
PoE
Kensington Security Slot
Business Class Wireless
Powerful Hardware
EAP110 features 802.11n Wi-Fi and 2*2 MIMO technology, wireless speeds of up to 300Mbps
With Qualcomm Atheros 560MHz chipsets, EAP ensures incredible wireless coverage and reliability
300Mbps
2.4GHz
Free Centralized Management Platform
EAP Controller Software
EAP Controller Software enables users to manage hundreds of TP-LINK’s EAPs simultaneously and easily from PCs in the network, making centralized business Wi-Fi management efficient, visible and more cost-effective like never before.
Efficient Guest Authentication Captive Portal
Captive portal provides one convenient method of authentication for Wi-Fi guests. A captive portal requires users to perform certain actions before network access is allowed. The required action must be verified by an external portal server or customized database by the administrator, which can be simply viewing and agreeing to an acceptable use policy, or entering a user ID and password.
Applicable to Multi-user Environment
Designed for Business Performance
With easy mounting design, PoE power supply, Cluster feature, Centralized management software, Captive portal, Auto RF management, and business hardware, EAP series are specially designed for the high-density, most demanding business environments, including schools, hotels, and enterprises.
Compatibility
EAP110 supports
802.11 b/g/n products
Load Balance
Load balance ensures large numbers of users have smooth network experiences in large business networks
Multiple Operating Modes
Multiple operating modes satisfy different application conditions including Managed AP and standalone AP modes
LSOH Material
Adopts Low Smoke Zero Halogen (LSOH) materials for UL2043 compliance
Dustproof design
Prevents dust from dropping onto the PCB through bypass louver, which ensures long-term, unhindered operation.
Quality of Service (QoS)
Prioritizes data, voice, and video applications to ensure time-sensitive traffic takes priority over all other traffic
| EAP Series | Auranet EAP110 | Auranet EAP120 | Auranet EAP220 |
|---|---|---|---|
| Product | 300Mbps Wireless N Access Point | 300Mbps Wireless N Gigabit Access Point | N600 Wireless Dual Band Gigabit Access Point |
| Wireless Standards | IEEE 802.11 n/b/g | IEEE 802.11 n/b/g | IEEE 802.11 n/b/g/a |
| Speed | 2.4GHz : 300Mbps | 2.4GHz : 300Mbps | 2.4GHz : 300Mbps 5GHz : 300Mbps |
| Ethernet Port | 10/100Mbps Port*1 | Gigabit Port*1 | Gigabit Port*1 |
| PoE | Passive PoE | 802.3af | 802.3af |
| Internal Antennas | 2 * 3dBi | 2 * 4dBi | 4 * 4dBi |
| EAP Controller | √ | √ | √ |
| Multiple SSIDs | 8 | 8 | 16 |
| Captive Portal | √ | √ | √ |
| MAC Filtering | √ | √ | √ |
| Wireless Schedule | √ | √ | √ |
| Rogue AP Detection | - | - | √ |
| Automatic RF Management | √ | √ | √ |
Features
EAP Controller Software enables administrators to easily manage hundreds of EAPs
Support Passive PoE for convenient and affordable installation
Simple mounting design to easily mount to a wall or ceiling
300Mbps wireless data rate for uninterrupted wireless connection
Captive portal provides one convenient method of authentication for Wi-Fi guests
Rate limit on per SSID to restrict the bandwith of each client
Access Control restricts or allows the client to access the specified network segment
Reboot Schedule enables all the APs to be rebooted automatically within a specified time
WPA/WPA2-enterprise, 802.1X with RADIUS secure authentication and rogue access point detection ensure the security of WLAN
Multi-SSID divides multiple wireless network for different users
Load balance ensures large numbers of users have smooth network experiences in large business networks
Compatible with 802.11 b/g/n products
Multiple operating modes satisfy different application conditions including managed AP and standalone AP modes
QoS function prioritizes data, voice, and video applications to ensure time-sensitive traffic takes priority over all other traffic
Prevents dust from dropping onto the PCB through bypass louver, which ensures long-term, unhindered operation.
Specifications
| HARDWARE FEATURES | |
|---|---|
| Interface | Fast Ethernet (RJ-45) Port *1（Support Passive PoE） |
| Button | Reset |
| Power Supply | 24VDC / 1A Passive PoE Supply |
| Power Consumption | 7.7W |
| Wireless Standards | IEEE 802.11n, IEEE 802.11g, IEEE 802.11b |
| Dimensions ( W x D x H ) | 7.1 x 7.1 x 1.9 in. (180*180*47.5mm) |
| Antenna Type | Internal 2* 3dBi Omni |
| Mounting | Ceiling /Wall Mounting (Kits included) |
| Physical Security Lock | Kensington Lock Slot |
| Watch Dog | Yes |
| WIRELESS FEATURES | |
|---|---|
| Wireless Standards | IEEE 802.11n, IEEE 802.11g, IEEE 802.11b |
| Frequency | 2.4-2.4835GHz |
| Signal Rate | 11n: Up to 300Mbps(dynamic) 11g: Up to 54Mbps(dynamic) 11b: Up to 11Mbps(dynamic) |
| Reception Sensitivity | 300M: -71dBm@10% PER 150M: -75dBm@10% PER 54M: -78dBm@10% PER 11M: -93dBm@8% PER 6M: -92dBm@10% PER 1M: -96dBm@8% PER |
| Wireless Functions | Multiple SSIDs （Up to 8 SSIDs） Enable/Disable Wireless Radio Automatic Channel Assignment Transmit Power Control （Adjust Transmit Power on dBm） QoS(WMM) Rate Limit Reboot Schedule Wireless Schedule Wireless Statistics based on SSID/AP/Client |
| Wireless Security | Captive Portal Authentication Access Control Wireless Mac Address Filtering Wireless Isolation Between Clients SSID to VLAN Mapping Rogue AP Detection 802.1X Support 64/128/152-bit WEP / WPA / WPA2-Enterprise,WPA-PSK / WPA2-PSK |
| Transmission Power | CE: <20dBm FCC: <26dBm |
| MANAGEMENT | |
|---|---|
| EAP Controller Software | Yes |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1,v2c |
| System Logging Local/Remote Syslog | Local/Remote Syslog |
| Telnet | Yes |
| Web-based Management | HTTP/HTTPS |
| Management VLAN | Yes |
| OTHERS | |
|---|---|
| Certification | CE, FCC, RoHS |
| Package Contents | 300Mbps Wireless N Ceiling Mount Access Point EAP110 Passive PoE Adapter, Power Cord, Mounting Kits, Resource CD Installation Guide |
| System Requirements | Microsoft Windows 10/8/7/Vista/XP |
| Environment | Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
| Brand | TP Link |
|---|---|
| Warranty | 7 Day Replacement |
| Shipping | Same Day From Lahore |
