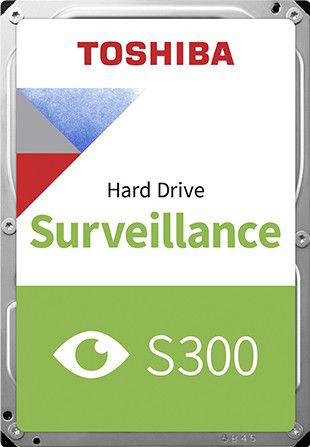

Toshiba S300 1TB Surveillance 3.5” Internal Hard Drive
Overview
S300 Surveillance Hard Drive
Always On, Always Watching
EMEA Region, Toshiba Storage Solutions – With surveillance systems, nothing but the best is good enough. The Toshiba 3.5-inch S300 is built to meet the highest demands. With support for up to 64 high-resolution surveillance video cameras simultaneously and up to 6 TB capacity, it brings everything into clear view. Each S300 is built with the highest-quality components and has passed rigorous tests to ensure 24 x 7 reliability and performance. That’s Toshiba quality you can trust under the harshest working conditions.
Use for:
Surveillance Digital Video Recorders (sDVR)
Surveillance Network Video Recorders (sNVR)
Hybrid sDVR (analog and IP)
3.5" SATA Hard Drive
5400 rpm
256 MB buffer
24/7 operation
Supports up to 64 video cameras
High reliability and enhanced real-time performance
Toshiba Dynamic Cache Technology
Toshiba Stable Platter Technology
High-endurance design
3-year warranty
6TB4TB2TB1TB
Colour
RELENTLESS RELIABILITY
Reliability is a function of component quality and testing. The S300 takes it to a new level, using optimised components to deliver the clear detail from up to 64 video cameras at the same time. Rigorous testing provides performance you can trust day in, day out.
ATTENTION TO DETAIL
When it comes to those events where even the single frame counts, the S300 has been designed to record even the smallest detail. 24/7 reliability and high-performance ensure you will capture every detail to analyze your security footage at any time.
S300
Surveillance Hard Drive
DESIGNED AND TESTED FOR COMPATIBILITY
The S300 has been designed and tested to support up to 64 high resolution cameras, allowing flexible scalability for your security camera systems. Compatible with DVR, NVR, video servers and video management systems for around-the-clock security, the surveillance never sleeps – so that you can.
SMART PERFORMANCE DELIVERS
The S300 is a smart performer. That's because Toshiba's Dynamic Cache Technology optimises read and write cycle cach allocation through buffer management and a special on-board cache algorithm.
INTEGRATED RV SENSORS
Regular hard disk drives without RV sensors can affect the performance of a multi-bay system by generating 'knock-on' vibration. The S300 ensures high reliability by minimising vibration effects through their advanced control and sensing technology. Multiple sensors detect the slightest shock and built-in RV sensors also compensate for rotational vibration - eliminating the possibility of 'knock-on' vibration in multi-bay surveillance systems.
HIGH ENDURANCE, HIGH RELIABILITY
The high-endurance, high-performance components of the S300 withstand harsh environments for superior reliability. High-temperature environments trigger optimized seek speed to support lower power consumption while automatically reducing noise and vibration emissions. Up to one million hour MTTF (Mean time to failure) and up to 180 TB per year workload rating provide peace of mind when operating security camera systems.
BUILT TO DELIVER, DESIGNED TO LAST
Toshiba is renowned the world over for 50 years of leading innovation – and the power behind its range of hard drives is no exception. Designed for high capacity and excellent performance, you can be sure that Toshiba’s wealth of experience in hard drives is at work in your storage system. A three year extended warranty is also included with the S300 for the ultimate peace of mind.
Product Specifications
Basic Specifications
Form factor
3,5-inch
Interface
6.0 Gbit/s
Number of cameras supported
up to 64
Drive bays supported
1 to 8
Rotational Vibration (RV) Sensors
yes (HDWT140UZSVA)
Advanced Format (AF)
yes
RoHS compatible
yes
Halogen Free
No
Shock Sensor
yes
Recording Technology
CMR:
HDWT140UZSVA, HDWV110UZSVA
SMR:
HDWT740UZSVA, HDWT720UZSVA, HDWT860UZSVA, HDWT840UZSVA
Performance
Rotational speed
5400 rpm (2 TB- 6 TB)
5700 rpm (1 TB)
Max. data transfer speed (sustained)
153 MB/s Typ. (1 TB CMR)
157 MB/s Typ. (4 TB CMR)
184MB/s Typ. (2 TB, 4 TB SMR, 6 TB)
Buffer size
256 MB (6 TB)
128 MB (2 TB - 4 TB)
64 MB (1 TB)
Average latency
5,56 ms
Native Command Queing (NCQ)
supported
Reliability
Workloads
110 TB/year (4 TB CMR)
180 TB/year (1 TB, 2 TB, 4 TB SMR, 6 TB)
MTTF
1.000.000 hours
Unrecoverable error rate
1 per 10E14 bits read
24/7 operation
yes
Load / Unload Cycle
600.000 (2 TB - 6 TB)
300.000 (1 TB)
Power Management
Supply voltage
5V DC ±5%; 12V DC ±10%
Consumption (operating)
7.50 W typ. (4 TB CMR)
5.70 W typ. (1 TB CMR)
4.84 W typ. (6 TB SMR)
4.36 W typ. (4 TB SMR)
4.11 W typ. (4 TB SMR)
4.01 W typ. (2 TB SMR)
Consumption - Active Idle
4.00 W typ. (4 TB CMR)
3.00 W typ. (1 TB CMR)
2.81 W typ. (6 TB SMR)
2.36 W typ. (4 TB SMR)
2.33 W typ. (4 TB SMR)
2.08 W typ. (2 TB SMR)
Environmental
Temperature (operating / non-operating)
0 - 70° C / -40 - 70° C (2 TB - 6 TB)
0 - 65 °C / -40 - 70 °C (1 TB)
Vibration (operating)
4 TB CMR:
0.75 G (5 to 300 Hz)
0.25 G (300 to 500 Hz)
2 TB, 4TB SMR, 6 TB:
0.50 G (5 to 350 Hz)
0.25 G (350 to 500 Hz)
1 TB:
0.67 G (5 to 500 Hz)
Vibration (non-operating)
29.4 m/s2 {3.0 G} (5 to 500 Hz) (6 TB, 4 TB SMR, 2 TB)
49.0 m/s2 {3.0 G} (5 to 500 Hz) (4 TB CMR)
10.2 m/s2 {1.04 G} (2 to 200 Hz) (1 TB)
Shock (operating)
70 G / 2 ms duration
Shock (non-operating)
6 TB, 4 TB CMR:
300 G / 2 ms duration
1 TB, 2 TB, 4TB SMR:
350 G / 2 ms duration
Acoustics (idle mode)
26 dB typ. (4 TB CRM)
24 dB typ. (6 TB SRM)
22 dB typ. (4 TB SMR)
21 dB typ. (2 TB SMR)
19 dB typ. (1 TB CRM)
Physical
Dimensions
147(L) x 101.85(W) x 26.1(H)mm
Weight (approx.)
720 g max. (4 TB CMR)
680 g max. (6 TB SMR)
650 g max. (4 TB SMR)
450 g max. (1 TB CMR)
440 g max. (2 TB SMR)
Box Content
Box Content
3.5-inch internal HDD - S300 Surveillance Hard Drive
| Brand | Toshiba |
|---|---|
| Hard Disk Capacity | 1TB HDD |
| Warranty | 7 Day Replacement |
| Shipping | Same Day From Lahore |
