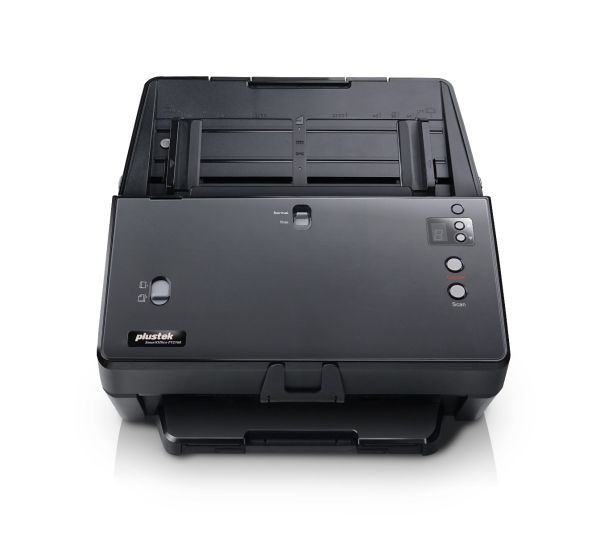

Plustek SmartOffice PT2160 Sheet-Feed ADF Scanner
SmartOffice PT2160
Change The way of Digitization
Plustek patented asymmetrical paper feeding guide
Asymmetrical paper feeding guides design to accommodate various stacked paper scans sizes for smoother paper handling.
Reliable paper feeding
The innovative reversible friction rollers increase the stability of document feeding and the ability of paper separation. It avoids the risk of multi-feed and incorrect result when you scan batch of document/card in different thickness and size.
One switch to protect your fragile document
Due to the different types of papers for every industry, the PT2160 provides a thickness switch for more reliable scanning, for example, prevent the thin paper which might be damaged by friction roller or by paper jam.
USB3.0 : High speed document transfer to PC
The scanner supports USB 3.0 to facilitate high-speed data transmission between the scanner and the computer.
Reduce Scanning Error
Equipped with ultrasonic muilti-feed detector, which detect accurately the error when feed two or more pages at the same time.
One sheet of paper
Two sheets of paper (multi-feed)
Bundled with Plustek OCR* and Plustek DocAction professional button configuration software
Based on your requirement you can set up to 9 customizable profiles
Upload location
File name
File format
Color mode
And More
Each profile contains all setting you need
| Image Sensor | CIS x 2 |
|---|---|
| Light Source | LED |
| Optical Resolution | 600 dpi |
| Hardware Resolution | 600 x 600 dpi |
| Scan Modes | Color: 48-bit input, 24-bit output Grayscale: 16-bit input, 8-bit output B/W: 1-bit |
| ADF Capacity | 1. 100 sheets (A4/ Letter, 70 g/㎡ or 18 Lbs) 2. 30 sheets (Business Cards, landscape feeding) 3. Plastic Card, Max. thickness under 1.2 mm landscape feeding Note: Maximum ADF capacity varies, depending upon paper weight. |
| Scanning Speed ( ADF ) | 60 ppm/ 120 ipm (Grayscale/B&W mode, 200 dpi, A4 Portrait) 60 ppm/ 120 ipm (Grayscale/B&W mode, 300 dpi, A4 Portrait) 60 ppm/ 120 ipm (Color mode, 200 dpi, A4 Portrait) 60 ppm/ 120 ipm (Color mode, 300 dpi, A4 Portrait) Note: Actual scanning speeds are affected by data transmission, software processing times with USB 3.0 connection and finally by the specification of the pc. |
| Scanning Area (W x L) | Max: 216 x 5080 mm (8.5” x 200”) Min: 13.2 x 13.2 mm (0.52” x 0.52”) |
| Acceptable Paper Sizes (W x L) | Max: 244 x 5080 mm (9.65” x 200”) Min: 50.8 x 50.8 mm (2” x 2”) |
| Acceptable Paper Weight (Thickness) | 27 to 413 g/㎡ (7.2 to 110 Lbs) |
| Multi-feed Detection | With ultrasonic technology |
| Daily Duty Scan ( Sheets ) | 8,000 |
| Roller Lifetime (Scans) | 300,000 |
| Pad Lifetime (Scans) | 100,000 |
| Action Button | 5 Buttons: Power, Up, Down, Cancel, Scan 9 function keys are all customizable. |
| Power Supply | 24 Vdc/ 1.25 A |
| Interface | USB 3.0 |
| Net Weight | 4.1 Kgs (9.04 Lbs) |
| Dimensions (W x D x H) | 319.9 x 298.2 x 236.6 mm (12.59" x 11.74" x 9.32") |
| Protocol | TWAIN Compliant |
| OS | Windows 7 / 8 / 10 |
| Hardware Requirements | CPU: Intel® Core i5 2.5 GHz or higher Memory: 4 GB (32 bit Windows) / 8GB (64-bit Windows) USB Port: USB 3.0 Port (USB 2.0/1.1 supported) |
| Bundled Software | Plustek DocAction Plustek DocTWAIN |
| Built-in OCR | Plustek OCR (Powered by ABBYY® FineReader®) |
| Brand | Plustek |
|---|---|
| Warranty | 1 Year Manufacturer |
| A3 | No |
| Scane Type | Sheetfed |
| Shipping | 24 - 48 hrs |
| Scan Speed Black | 51 - 60 ppm |
| Scan Speed Color | 51 - 60 ppm |
| DPi | 600 |
