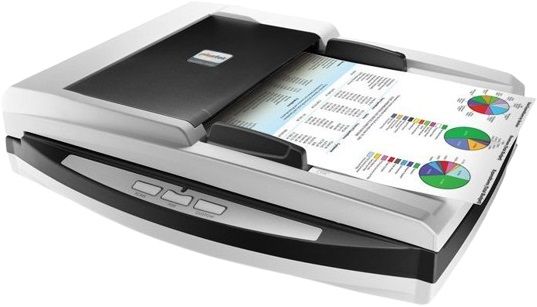

Plustek Flatbed Scanner With Adf PL4080
|
Auto-detection for ADF and Flatbed! The PL4080 is a 40 pages per minute duplex scanner combining an Automatic Document Feeder (ADF) and flatbed unit with an up to 3000 pages per day duty cycle. The Automatic Document Feeder allows you to scan up to 50 pages by simply loading the feeder and pressing a button on the scanner. The flatbed enables you to scan fragile documents or small items such as receipts or business cards. |
Complete Your Scanning with One Touch Single Touch buttons automate up to 7 different scanning jobs including: scan to searchable PDF, save to folder on your network or your computer, scan to email, scan to an application, and scan to printer. |
|
|
Compatible with most imaging applications Industry standard TWAIN and WIA drivers combined with TIF, JPG, PDF and Microsoft Office file formats ensure compatibility with thousands of scanning and imaging programs. ABBYY FineReader Sprint is included to easily create and manage searchable PDFs at the touch of a button. Built in image processing insures the highest image quality, reduces rescans and increases OCR accuracy. |
Environmentally Responsible and Energy-Saving The ENERGY STAR certification of the SmartOffice PL4080 guarantees environmentally responsible design features, such as low power LED illumination technology and power-saving functions. |
|
Features The SmartOffice PL4080 has following features: |
|
● Auto Threshold Automatically thresholds the current image into a binary black and white image.
|
|
● Auto Rotate Automatically rotates document based on the contents of the document.
|
|
● Auto Crop & Deskew Automatically straightens and crops image to the documents actual size.
|
|
|
● Color Dropout Removes red, green or blue color when scanning forms. |
● Blank Page Removal Automatically removes blank pages without manual editing. |
|
Specification
| Image Sensor | CIS x 2 |
| Light Source | LED |
| Optical Resolution | 600 dpi |
| Hardware Resolution | Flatbed: 1200 x 1200 dpi ADF: 600 x 600 dpi |
| Scan Modes | Color: Input 48-bit, Output 24-bit Grayscale: Input 16-bit, Output 8-bit Black & White: 1-bit |
| ADF Capacity | 1. 50 sheets (A4/ Letter, 70 g/㎡ or 18 Lbs), Max. thickness under 5mm (0.2"). 2. 20 sheets (Business Cards). Note: Maximum ADF capacity varies, depending upon paper weight. |
| Scanning Speed ( ADF ) | 40 ppm/ 80 ipm (Color mode, 200 dpi, A4 Portrait) 40 ppm/ 80 ipm (Grayscale mode, 200 dpi, A4 Portrait) 40 ppm/ 80 ipm (B&W mode, 200 dpi, A4 Portr8it) Note: Results may vary depending upon your scanning application, computer processor and system memory. |
| Scanning Area (W x L) | Flatbed: Max. 216 x 297 mm (8.5” x 11.69”) Min. 12.7 x 12.7 mm (0.5” x 0.5”) ADF: Max. 216 x 356 mm (8.5” x 14”) Min. 12.7 x 12.7 mm (0.5” x 0.5”) |
| Acceptable Paper Sizes (W x L) | Flatbed: Max. 216 x 297 mm (8.5” x 11.69”) Min. 12.7 x 12.7 mm (0.5” x 0.5”) ADF: Max. 220 x 1270 mm (8.66” x 50”) Min. 90 x 50.8 mm (3.55” x 2”) |
| Acceptable Paper Weight (Thickness) | 50 to 120 g/㎡ (14 to 32 Lbs) |
| Multi-feed Detection |
| Daily Duty Scan ( Sheets ) | 3,000 |
| Roller Lifetime (Scans) | 100,000 |
| Pad Lifetime (Scans) | 25,000 |
| Action Button | Scan、PDF、Custom |
| Other Function |
| Power Supply | 24 Vdc/ 0.75 A |
| Interface | USB 2.0 |
| Net Weight | 3.98 Kgs (8.77 Lbs) |
| Dimensions (W x D x H) | 418 x 326 x 101 mm (16.45" x 12.83" x 4") |
| Protocol | TWAIN Compliant |
| OS | Windows XP / Vista / 7 / 8 / 10 LINUX SANE for Systems Integrator. Please contact local sales. |
Hardware Requirements |
Pentium® IV 3.2 GHz processor or faster CPU DVD-ROM Drive One available USB Port (USB 2.0 recommended) 2 GB RAM (4 GB or higher recommended) 2 GB free HDD space (2 GB or larger recommended) |
| Brand | Plustek |
|---|---|
| Warranty | 1 Year Manufacturer |
| A3 | No |
| Scane Type | Flatbed |
| Shipping | 24 - 48 hrs |
| Scan Speed Black | 31 - 40 ppm |
| Scan Speed Color | 31 - 40 ppm |
| DPi | 1200 |
