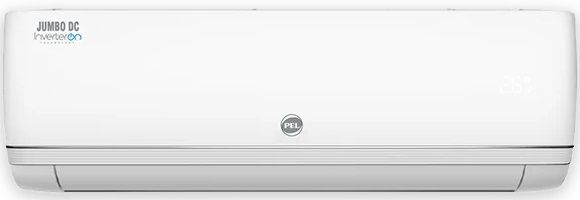

SPECIFICATION 18K Jumbo DC Prime
Rated Capacity - Cooling 5275(1200~6200) W
Rated Capacity - Heating 5422(1200-6406) W
Rated Running Current - Cooling 7.2(1.4~12.0) A
Rated Running Current - Heating 6.0(1.4-13.0) A
Maximum Current 13.00 A
Rated Power Cooling 1575 W
Rated Power Heating 1309 W
Maximum Input Power 2500 W
Energy Efficiency Ratio (EER) 3.34
Power supply source 220-240V~/50Hz/1P
Refrigerant R410A/1350 Gas
Air Flow Volume 1200 m3/h
Outdoor Noise level 55.00 dB(A)
Indoor unit weight （Net ) 14/17 Kg
Outdoor unit weight (Net ) 31/36 Kg
Net Dimension - Indoor (WidthxDepthxHeight) 1132×332×229 mm
Net Dimension - Outdoor (WidthxDepthxHeight) 853×349×602 mm

Split AC installation Cost:

Description (Wall Mounted Split AC 1-2 Ton) Tariff (PKR)
PEL Technician Installation 4500
Dismantling Charges in case of previous AC 2000
Extra Copper Pipe (RFT) 750
PVC Drain Pipe (RFT) 100
Simple Grooving without Pipe Concealing (RFT) 150
Iron Frame Charges (Powder Coated) 2000
Filling of Holes with white Plaster of Paris (RFT) 200
PVC Duct for Refrigeration pipe (RFT) 400
Additional Gas Charging (if required)
**In case of more than 10ft outdoor height		 (R-22) 350 Per RFT
(R410a) 500 Per RFT
