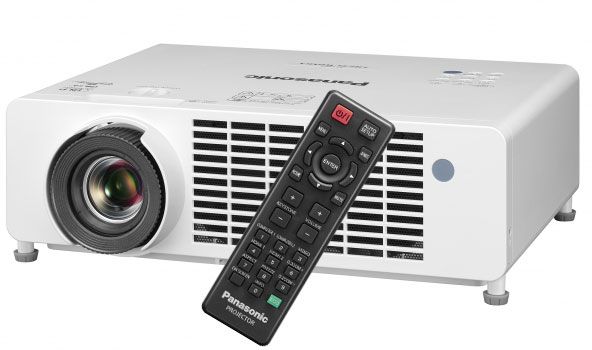

Panasonic PT-LRZ35 DLP Projector
SKU
N47227
Category: Projectors
Brilliantly Vivid Images Resist Color Breakup
RGB LED light engine employs discrete LEDs for each color channel to prevent feasible breakup and widen the gamut for deep, dynamic color reproduction. High-visibility images are also free from the rainbow effect.
Diverse Connectivity Streamlines Collaboration
HDMI®-CEC supports one-touch playback via compatible players, automatically powering-on the projector and syncing select playback commands. Teams can cast to a streaming module*1 powered by a built-in USB DC outlet, minimizing cable clutter.
Stress-free Reliability and Lasting Picture Quality
Wheel-less design paves the way for improved hermetic sealing, with the dust-resistant DMD block enabling implementation of filterless cooling for high image quality and very low maintenance over 20,000 hours*2 of operation.
Swift Setup with 1.3x Zoom and Easy Image Adjustment
A 1.3x zoom lens, vertical lens-shift function (+50 %, +40 %, manual), and vertical keystone correction (±30 °) bring more freedom and less image distortion for desktop projection setups while 2-axis 360 ° installation expands creative signage possibilities.
| Projector type | 1-Chip DLP™ projector |
|---|---|
| DLP™ chip | Panel size (mm) | 17.0 mm (0.67 in) diagonal, 16:10 aspect ratio |
| DLP™ chip | Panel size (inch) | 0.67 in diagonal, 16:10 aspect ratio |
| DLP™ Chip | Display Method | DLP™ chip x 1, DLP™ projection system |
| DLP™ chip | Number of Pixels | 2,304,000 (1920 x 1200 pixels) |
| Light Source | Light Emitting Diode |
| Light output*1 | 3,500 lm |
| Time until light output declines to 50 %*2 | 20,000 hours |
| Resolution | 1920 x 1200 pixels |
| Contrast Ratio*1 | 30,000:1 (When [Light Power] is set to [Normal] and [Picture Mode] is set to [Dynamic]) |
| Screen size [diagonal] (mm) | 1.02–7.62 m (40–300 in), 16:10 aspect ratio |
| Screen size [diagonal] (inch) | 40–300 in, 16:10 aspect ratio |
| Center-to-corner zone ratio*1 | 90 % |
| Lens | 1.3x manual zoom (throw ratio: 1.28–1.69:1) |
| Lens shift | Vertical (from center of screen) | Vertical: +50 %, +40 % |
| Keystone Correction Range | Vertical: ±30 % |
| Installation | Ceiling/floor, front/rear, 2-axis 360-degree installation |
| Terminals | Serial In | D-sub 9-pin (female) x 1 for external control (RS-232C compliant) |
| Terminals | LAN | RJ-45 x 1 for network control, 10Base-T, 100Base-T, compatible with PJ Link™ (Class 1) |
| Power Supply | AC 100-240 V, 50/60 Hz |
| Power Consumption | NORMAL: 420 W, ECO: 255 W, QUIET: 196 W |
| Operation noise*1 | NORMAL: 35 dB, ECO: 27 dB, QUIET: 24 dB |
| Dimensions (W x H x D) (mm) | 375 x 124*3 x 314 mm (14 3/4˝ x 4 7/8˝ *3 x 12 3/8˝ ) (including protruding parts) |
| Dimensions (W x H x D) (inch) | 375 x 124*3 x 314 mm (14 3/4˝ x 4 7/8˝ *3 x 12 3/8˝ ) (including protruding parts) |
| Weight*4 | Approx. 6.7 kg (14.8 lbs) |
| Operating Environment | Operating temperature: 0–40 °C (32–104 °F)*5, operating humidity: 20–80 % (no condensation) |
| Applicable Software | Multi Monitoring & Control Software, Early Warning Software |
| Note | *1 Measurement, measuring conditions, and method of notation all comply with ISO/IEC 21118: 2020 international standards. Value is average of all products when shipped. *2 Around this time, light output will have decreased by approximately 50 %. IEC62087: 2008 Broadcastcontents, under conditions with 30 °C (86 °F), 1,400 m above sea level, and 0.15mg/m3 of particulate matter. Estimated time until light output declines to 50 % varies depending on environment. *3 With legs at shortest position. *4 Average value. May differ depending on the actual unit.*5 Note that the projector cannot be used at altitudes exceeding 4,200 m (13,780 ft) above sea level. 4,200 m (13,780 ft) above sea level is the maximum elevation at which performance can be guaranteed. In the following operating environments, light output may be reduced to protectthe projector: when the projector is used at altitudes below 1,400 m (4,593 ft) and ambient temperature exceeds 40 °C (104 °F); when the projector is used at altitudes between 1,400 m (4,593 ft) and 2,700 m (8,858 ft) exclusive and ambient temperature exceeds 35 °C (95 °F); andwhen the projector is used at altitudes between 2,700 m (8,858 ft) and 4,200 m (13,780 ft) exclusive and ambient temperature exceeds 30 °C (86 °F). |
| Built-in Speaker | 10 W monaural |
| Terminals | Audio In 1 | M3 stereo mini-jack x 1 |
| Terminals | Variable Audio Out | M3 stereo mini-jack x 1 |
| Terminals | Audio In 2 | M3 stereo mini-jack x 1 |
| Terminals | Computer 1 In | D-sub 15-pin (female) x 1 (RGB/YPBPR/YCBCR) |
| Terminals | HDMI In 1/HDMI In 2 | HDMI 19-pin x 2 (HDCP and Deep Color compatible), CEC supported |
| Terminals | Video In | Pin jack x 1 |
| Terminals | DC Out | USB Connector (Type A) x 1 (for power supply, DC 5 V/2 A) |
| Terminals | Computer 2 In | D-sub 15-pin (female) x 1 (RGB/YPBPR/YCBCR) |
| Terminals | Computer Out | D-sub 15-pin (female) x 1 (RGB/YPBPR/YCBCR) |
| Terminals | Micro USB | 1 (for service use) |
| Brand | Panasonic |
|---|---|
| HDMI | Yes |
| Warranty | 1 Year Manufacturer |
| 3D | No |
| Lumens | 3500 |
| Contrast Ratio | 30,000:1 |
| Projector Resolution | WUXGA |
| Aspect Ratio | 16:10 |
| Shipping | 24 - 48 hrs |
