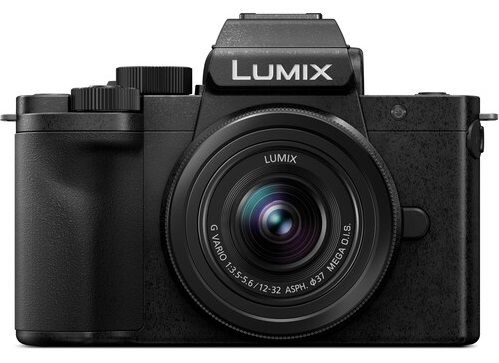

Panasonic Lumix DC-G100V Digital Camera

Specs

Size and Weight

Height

82.5mm

Width

115.6mm

Depth

54.2mm

Weight

345g

All values are approximate. Weight with SD card and battery. Lens is excluded. Dimensions exclude protrusions.

Superb-quality 4K/30p and FHD/60p video recording capability with a handy compact body.

5-Axis HYBRID I.S. — a new image stabilization system combined with O.I.S. and E.I.S.

Outstanding audio quality — OZO Audio by Nokia and five audio recording modes.

Easy image transfer to your smartphone via Wi-Fi and Bluetooth®.

TYPE

Type

Digital Single Lens Mirrorless camera

Recording media

SD Memory Card, SDHC Memory Card, SDXC Memory Card
(Compatible with UHS-I UHS Speed Class 3 standard SDHC / SDXC Memory Cards.)

Image sensor size

17.3 x 13.0 mm (in 4:3 aspect ratio)

Lens mount

Micro Four Thirds mount

IMAGE SENSOR

Type

Live MOS Sensor

Total pixels

21.77 megapixels

Camera effective pixels

20.30 megapixels

Color filter

Primary color filter

Dust reduction system

No

LATITUDE

LATITUDE

12 stops (V-Log L)

IMAGE STABILIZATION SYSTEM

IMAGE STABILIZATION SYSTEM

5-axis HYBRID I.S. *For video recording only. 4-axis compensation works in 4K video recording.

RECORDING SYSTEM

Recording file format

Still image

JPEG (DCF, Exif 2.31), RAW

4K PHOTO**

MP4 (H.264/MPEG-4 AVC, Audio format: AAC (2ch))
Extracted still images: JPEG (DCF, Exif 2.31)

Motion picture

MP4 (H.264/MPEG-4 AVC, Audio format: AAC (2ch))

Aspect ratio

4:3, 3:2, 16:9, 1:1

Image quality

RAW, RAW+Fine, RAW+Standard, Fine, Standard

Color space

sRGB, AdobeRGB

File size (Pixels)

Still image

[4:3] 5184x3888(L) / 3712x2784(M) / 2624x1968(S) / 3328x2496(4K PHOTO)
[3:2] 5184x3456(L) / 3712x2480(M) / 2624x1752(S) / 3504x2336(4K PHOTO)
[16:9] 5184x2920(L) / 3840x2160(M) / 1920x1080(S) / 3840x2160(4K PHOTO)
[1:1] 3888x3888(L) / 2784x2784(M) / 1968x1968(S) / 2880x2880(4K PHOTO)

Motion picture**

MP4**

[4K] 3840x2160 4K/30p: 100Mbps
[4K] 3840x2160 4K/25p: 100Mbps
[4K] 3840x2160 4K/24p: 100Mbps
[Full HD] 1920x1080 FHD/60p: 28Mbps
[Full HD] 1920x1080 FHD/50p: 28Mbps
[Full HD] 1920x1080 FHD/30p: 20Mbps
[Full HD] 1920x1080 FHD/25p: 20Mbps
[Full HD] 1920x1080 FHD/24p: 24Mbps
[HD] 1280x720 HD/30p: 10Mbps
[HD] 1280x720 HD/25p: 10Mbps

Slow & Quick**

MP4**

[Full HD] 1920x1080 60p, 28Mbps (Sensor output is 120fps / 30fps / 15fps / 8fps)
[Full HD] 1920x1080 50p, 28Mbps (Sensor output is 100fps / 25fps / 12fps / 6fps)
[Full HD] 1920x1080 30p, 20Mbps (Sensor output is 120fps / 60fps / 15fps / 8fps / 4fps)
[Full HD] 1920x1080 25p, 20Mbps (Sensor output is 100fps / 50fps / 12fps / 6fps / 3fps)

VIEWFINDER

Type

LCD Live View Finder

Pixels

Approx. 3,680k dots equivalent

Field of view / Magnification

Approx. 100% / Approx. 1.46x / 0.73x (35mm camera equivalent) with 50 mm lens at infinity; -1.0 m-1

Eye point / Diopter adjustment

Approx. 20 mm / -4.0 - +2.0 (dpt)

Eye sensor

Yes

REAR MONITOR

Type

TFT LCD monitor with static touch control

Monitor size

Free-angle, 3.0-inch (7.5cm), 3:2 aspect

Pixels

Approx. 1,840k dots

Field of view

Approx. 100%

FOCUS

Type

Contrast AF system

DFD technology

Yes

Focus mode

AFS (Single) / AFF (Flexible) / AFC (Continuous) / MF

AF mode

Face/Eye Detection / Tracking / 49-Area / Custom Multi / 1-Area / Pinpoint
(Full area touch is available) (Scalable AF frame size and flexible AF position)

AF detective range

EV -4 - 20 (ISO100 equivalent)

Starlight AF

Yes

AF assist lamp

Yes

AF lock

Set the Fn button in custom menu to AF lock

Post Focus / Focus Stacking

Yes / Yes

Others

AF-ON, Shutter AF, Half Press Release, Focus/Shutter Priority, Quick AF, Continuous AF (during motion picture recording), Eye Sensor AF, AF+MF, MF Guide, MF Assist, Touch MF Assist, Focus Peaking, Touch AF/AE Function, Touch Pad AF, Touch Shutter, Focus Switching for Vert/Hor, Focus Ring Lock, Loop Movement Focus Frame, Lens Focus Resume

EXPOSURE CONTROL

Light metering system

1728-zone multi-pattern sensing system

Light metering mode

Multiple / Center Weighted / Spot

Metering range

EV 0 - 18 (F2.0 lens, ISO100 equivalent)

Exposure mode

Program AE, Aperture Priority AE, Shutter Priority AE, Manual Exposure

ISO sensitivity (Standard output sensitivity)

Still image: Auto / i.ISO / 100 (Extended) / 200 / 400 / 800 / 1600 / 3200 / 6400 / 12800 / 25600 (Changeable to 1/3 EV step)
Creative Video Mode: Auto / 100 (Extended) / 200 / 400 / 800 / 1600 / 3200 / 6400 (Changeable to 1/3 EV step)

Exposure compensation

1/3 EV step, ±5EV (±3 EV for motion picture)

AE lock

Set the Fn button in custom menu to AE lock

WHITE BALANCE

White balance

AWB / AWBc / AWBw / Daylight / Cloudy / Shade / Incandescent / Flash / White Set 1, 2, 3, 4 / Color temperature setting 1, 2, 3, 4

White balance adjustment

Blue/Amber bias, Magenta/Green bias

Color temperature setting

2500-10000K in 100K

SHUTTER

Type

Electronically-control focal-plane shutter

Shutter speed

Still image: Time (Max. 60 second), 1/16,000 - 60
Motion picture: 1/16,000 - 1/25
Creative Video M mode / MF mode: 1/16,000 - 1/2

Live View Composite

1/2 - 60

Self timer

10sec, 3 images / 2sec / 10sec

Silent mode / Shutter type

Yes / Yes (Auto / Electronic front curtain / Electronic)

BRACKET

AE bracket

3, 5, 7 images in 1/3, 2/3 or 1 EV step, max. ±3 EV, single/burst

Aperture bracket

3, 5 or all positions in 1 EV step

Focus bracket

1 to 999 images, focus steps can be set in 10 levels

White balance bracket

3 images in blue/amber axis or in magenta/green axis, color temperature setting

BURST SHOOTING

Burst speed

[Electronic first curtain shutter]
AFS/MF: H: 6 frames/sec, M: 4 frames/sec (with Live View), L: 2 frames/sec (with Live View)
AFF/AFC: H: 5 frames/sec, M: 4 frames/sec (with Live View), L: 2 frames/sec (with Live View)
[Electronic shutter]
AFS/MF: H: 10 frames/sec, M: 4 frames/sec (with Live View), L: 2 frames/sec (with Live View)
AFF/AFC: H: 10 frames/sec, M: 4 frames/sec (with Live View), L: 2 frames/sec (with Live View)

Number of recordable images

RAW / RAW+JPEG: More than 20 images
JPEG: More than 480 images (When using a card with SD Speed Class with "UHS-I UHS Speed Class 3 (U3)".)
* Until the burst shooting speed slows. When recording is performed under the test conditions specified by Panasonic.

4K PHOTO**

Burst speed

30 frames/sec

Exif information

Yes (Each JPEG image cropped out of the 4K burst file complies with EXIF.)

TIME LAPSE SHOT

TIME LAPSE SHOT

Yes

STOP MOTION ANIMATION

STOP MOTION ANIMATION

Yes

FLASH

Flash type

TTL Built-in-Flash, GN5.1 equivalent (ISO200 ・m) / GN3.6 equivalent (ISO100 ・m) (Reference), Built-in Pop-up

Flash mode

Auto*, Auto/Red-eye Reduction*, Forced On, Forced On/Red-eye Reduction, Slow Sync., Slow Sync./Red-eye Reduction, Forced Off　　　　　*For iA, iA+ only.

Synchronization speed

Less than 1/50 second

Flash output adjustment

1/3EV step ±2EV

Flash synchronization

1st. Curtain Sync., 2nd Curtain Sync.

Wireless control

Yes (When using DMW-FL200L / FL360L / FL580L (sold separately)), Wireless Channel: 1ch/2ch/3ch/4ch

LIVE VIEW

Digital zoom

2x

Extra Tele Conversion

Still image: 1.4x (EX M), 2.0x (EX S)
Motion picture: 2.7x (FHD), 4.0x (HD)

Other functions

Level Gauge, Real-time Histogram, Guide Lines (3 patterns), Center Marker, Highlight display (Still image / motion picture), Zebra Pattern (Still image / motion picture), Frame Maker, REC Frame Indicator, Live View Boost

SELF SHOT

Self Shot mode

Yes (Still image / motion picture)

Shutter

Shutter Button, Touch, Face Shutter, Buddy Shutter

Effect

Soft Skin: 10 levels, Filter Select: Expressive / Retro / High Key / Monochrome / Toy Effect, Background Control: Defocus / Clear, Slimming Mode: 10 levels

VERTICAL POSITION INFORMATION

VERTICAL POSITION INFORMATION

Still image / Motion picture (ON/OFF)* *Firmware must be updated to version 1.2.

FUNCTION BUTTON

REC

4K PHOTO / Exposure Comp. / Wi-Fi / Q.MENU / Video Record / LVF/Monitor Switch / LVF/Monitor Disp. Style / AF/AE LOCK / AF-ON / Preview / One Push AE / Touch AE / Level Gauge / Focus Area Set / Zoom Control / Operation Lock / Focus Ring Lock / Dial Operation Switch / Photo Style / Filter Effect / Aspect Ratio / Picture Size / Quality / Metering Mode / Burst Rate / Self Timer / Live View Composite / Bracket / Focus Mode / Highlight Shadow / i. Dynamic / i. Resolution / Min. Shtr Speed / HDR / Shutter Type / Flash Mode / Flash Adjust. / Wireless Flash Setup / Ex. Tele Conv. / Digital Zoom / Stabilizer / E-Stabilization (Video) / 4K Live Cropping / Snap Movie / Motion Pic. Set / S&Q Effect / Picture Mode in Rec. / Sound Rec Level Adj. / Sound Rec Level Disp. / Built-in Mic / Mic. Directivity Adjust / Silent Mode / Peaking / Histogram / Guide Line / Frame Maker / Zebra Pattern / Monochrome Live View / Constant Preview / Live View Boost / Rec Area / Step Zoom / Zoom Speed / Sensitivity / White Balance / AF Mode/MF / Drive Mode / Rec/Playback Switch / Off / Restore to Default

PLAY

Wi-Fi / LVF/Monitor Switch / Rec/Playback Switch / Send Image (Smartphone) / 4K PHOTO Play / Delete Single / Protect / Rating 1, 2, 3, 4, 5 / RAW Processing / 4K PHOTO Bulk Saving / Off / Restore to Default

PHOTO STYLE

PHOTO STYLE

Standard / Vivid / Natural / Scenery / Portrait / Monochrome / L. Monochrome / L. Monochrome D / Cinelike D / Cinelike V / V-Log L / Custom

FILTER

FILTER

Expressive / Retro / Old Days / High Key / Low Key / Sepia / Monochrome / Dynamic Monochrome / Rough Monochrome* / Silky Monochrome* / Impressive Art / High Dynamic / Cross Process / Toy Effect / Toy Pop / Bleach Bypass / Miniature Effect / Soft Focus* / Fantasy / Star Filter* / One Point Color / Sunshine*
*For photos only.

PRINT

Direct print

PictBridge compatible

INTERFACE

USB

USB 2.0 Micro-B

HDMI***

microHDMI TypeD / VIERA Link
Video: Auto / 4K/25p / 1080p / 1080i / 720p / 576p
Audio: Stereo

External microphone input

φ3.5mm
Stereo/Lens Auto/Shotgun/Super Shotgun/Manual is selectable when attaching DMW-MS2 (sold separately).

Microphone

Stereo, Wind Noise Canceller: OFF / Low* / Standard / High *When attaching DMW-MS2 (sold separately).

Speaker

Monaural

WIRELESS

Wi-Fi

IEEE 802.11b/g/n, 2412 MHz - 2462 MHz (1-11 ch), Wi-Fi / WPA / WPA2, Infrastructure mode

Bluetooth

Bluetooth® v4.2 (Bluetooth Low Energy (BLE))

LANGUAGE

OSD language

English, Chinese (Traditional), Chinese (Simplified), Thai, Arabic, Persian, Vietnamese, Hindi

POWER

Battery

Li-ion Battery Pack (7.2V, 1025mAh, 7.4Wh) (Included)
USB power charging

Battery life (CIPA standard)

Approx. 270 images (rear monitor), 250 images (LVF), 900 images (Power Save LVF mode*) with H-FS12032
*Under the test conditions specified by Panasonic based on CIPA standard. When the time to get in the sleep mode is set to 1 sec.

Continuous recordable time (Motion picture)**

4K/30p, 4K/25p:
Approx. 80 min (rear monitor), 70 min (LVF) with H-FS12032

Actual recordable time (Motion picture)**

4K/30p, 4K/25p:
Approx. 40 min (rear monitor), 35 min (LVF) with H-FS12032

DIMENSIONS / WEIGHT

Dimensions (W x H x D)

Approx. 115.6 x 82.5 x 54.2 mm / 4.55 x 3.24 x 2.13 inch (excluding protrusions)

Weight

Approx. 345g / 0.76 lb (SD card, Battery, Body)
Approx. 303g / 0.66 lb (Body only)
Approx. 303g / 0.66 lb (Body only)Approx. 514g / 1.13 lb (SD card, Battery, H-FS12032 lens + tripod grip DMW-SHGR1 included)

OPERATING ENVIRONMENT

Operating temperature

0℃ to 40℃ (32°F to 104°F)

Operating humidity

10%RH to 80％RH

STANDARD ACCESSORIES

Software

・ The software to edit and playback images on computer is not bundled with this camera. To do this, PHOTOfunSTUDIO 10.0AE is available for download at Panasonic website using computer connected to the Internet.
https://panasonic.jp/support/software/photofun/download/d_pfs10ae.html (For Windows)
・ The software to process RAW file on computer is not bundled with this camera. To do this, SILKYPIX Developer Studio is available for download at Ichikawa Soft Laboratory's website using computer connected to the Internet.
http://www.isl.co.jp/SILKYPIX/english/p/ (For Windows / Mac)

Standard accessories

DC-G100V Kit
Hot Shoe Cover, Battery Pack, AC Adaptor, USB Connection Cable, Shoulder Strap, Lens Cap, Tripod Grip, Hand Strap

・ Operating Instructions for advanced features is available for downloaded at Panasonic LUMIX Customer Support Site using PC, smartphone or tablet connected to the Internet.

INTERCHANGEABLE LENS-1

Lens Name

LUMIX G VARIO 12-32mm / F3.5-5.6 ASPH. / MEGA O.I.S.

Lens Construction

8 elements in 7 groups (3 aspherical lenses, 1 ED lens)

Nano Surface Coating

-

Mount

Micro Four Thirds mount

Optical Image Stabilizer

Yes (MEGA O.I.S.)

Focal Length

f=12-32mm (35mm camera equivalent 24-64mm)

Aperture Type

7 diaphragm blades / Circular aperture diaphragm

Maximum Aperture

F3.5(Wide) - F5.6(Tele)

Minimum Aperture

F22

Closest Focusing Distance

0.20m/0.66ft (at focal lenghts 12-20mm) / 0.30m/0.98ft (at focal lenghts 21-32mm)

Maximum magnification

Approx. 0.13x / 0.26x (35mm camera equivalent)

Diagonal Angle of View

84°(Wide) to 37°(TELE)

Filter Size

37mm / 1.5in

Max. Diameter

φ55.5mm / 2.2in

Overall Length

Approx. 24mm / 0.94in (from the tip of the lens to the base side of the lens mount)

Weight

Approx. 70g / 2.47oz (excluding lens cap, lens rear cap )

Standard Accessories

Lens cap, Lens rear cap
