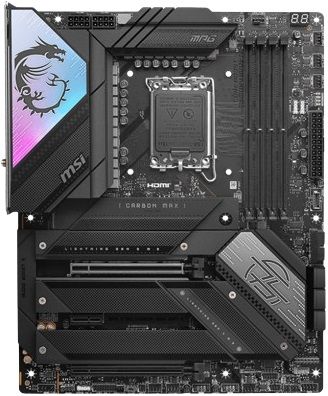

Msi Mpg Z790 Carbon Max Wifi II DDR5 Motherboard
SKU
S64396
Category: Motherboard
Msi Mpg Z790 Carbon Max Wifi II DDR5 Motherboard
MPG Z790 CARBON MAX WIFI II employs a carbon black color scheme and reflection decoration over Mysticlight RGB lighting to show a different identity. It is also powerful inside by featuring Wi-Fi 7 solution, optimized DDR5 circuit, and the latest PCIe 5.0 M.2 with Screwless M.2 Shield Frozr, making this motherboard one of the best Z790 ATX motherboards for Intel® 14th Gen and 13th Gen Core processors.
The MPG series brings out fashionable products by showing extremely unique styles and expressing a conceited attitude towards the challenge of the gaming world. With extraordinary performance and style, the MPG series defines the future of gaming fashion
TOOL-FREE M.2 INSTALLATION
Industrial first Magnetic with patented Screwless M.2 Shield Frozr & EZ M.2 Clip provide the easiest way for M.2 Installation.
MORE FEATURES
EZ Antenna
Pre-installed I/O Shield
Keep Out Zone Printing
XL Clip
HIGH-SPEED TRANSMISSION
5G LAN
Lightning USB 20G
Latest Wi-Fi 7
1x PCI-E 5.0 M.2 Slot
Lightning Gen 5 PCI-E
Latest DDR5 Memory
4x PCI-E 4.0 M.2 Slots
HARDWARE
COOLING
POWER SOLUTION
PROTECTION
POWER SOLUTION
PROTECTION
COOLING OVERVIEW
WATER COOLING
FULLY FAN CONTROL
SYSTEM COOLING
WATER COOLING
FULLY FAN CONTROL
SYSTEM COOLING
Extended Heatsink
Extended Heatsink enlarges the surface of heat dissipation, ensuring even high-end processors to run in full speed.
Direct Touch Heat-pipe
Connecting two MOS heatsinks to enlarge the surface of heat dissipation.
M.2 Shield Frozr
Keeps M.2 SSDs safe while preventing throttling, making them run faster.
7W/mK Thermal Pad
High quality 7W/mK MOSFET thermal pads and extra choke thermal pads ensure all cores running in high performance.
Enhanced M.2 Thermal
Double-sided M.2 Shield Frozr and Enlarged heatsink design keep M.2 SSDs safe while preventing throttling.
Enlarged PCH Heatsink
The enlarged heatsink design to reduce dust and noise as well as maintain high heat dissipation efficiency.
OPTIMIZED FOR WATER COOLING
Designed to support the most popular All-In-One & customized water cooling solutions on the market. A dedicated water pump PIN header supports up to 3 amp, giving you full control of the water pump speed. A clearly marked ‘keep-out-zone’ allows for easy and safe installation and a perfect fit.
TESTED TO WORK BEST WITH
MSI motherboards let you manage speeds and temperatures for all your system and CPU fans in BIOS and software with a simplified graphical interface. You can also set up to 4 temperature targets, which will adjust the fan speeds automatically.
DIY 2.0 – INTEGRATING WITH THE SYSTEM ENVIRONMENT
Connect and synchronize with MSI coolers and cases with strategically positioned pin-header locations including a dedicated pump-fan header.
FOR CPU COOLER
FOR WATERBLOCK COOLER
FOR TOP SYSTEM FAN
FOR FRONT SYSTEM FAN
FOR REAR SYSTEM FAN
STRUCTURE
PCB DESIGN
EZ OC TUNING
MORE FOR PERFORMANCE
PCB DESIGN
EZ OC TUNING
MORE FOR PERFORMANCE
DIRECT 19+1+1 PHASES POWER DESIGN
Unleash and sustain the maximum performance with a flagship VRM design built with a total of Direct 19+1+1 Power Phases. Combining dual power connectors and 105A Smart Power Stage, MPG Z790 CARBON MAX WIFI II is ready for the challenge of high-end processors.
19PHASE
VCPU PowerSPS 105A
1PHASE
GT
POWER
POWER
1PHASE
AUX
POWER
POWER
DIGITALL POWER DESIGN
A fully digital power design allows for faster and undistorted current delivery to the CPU at pin-point precision.
OPTIMIZED PCB SOLUTION
The PCB design has been optimized for higher bandwidth and faster transfer speeds, which is also beneficial for reliable circuit transmission.
8 PCB layers
IT-170 Server-grade PCB material
2oz Thickened Copper
IT-170 Server-grade PCB material
2oz Thickened Copper
P-CORE BEYOND 6GHZ+
To unleash the exceptional performance of Core i9-14900K processor, MSI P-Core Beyond 6GHz+ function enables effortless 1-core / 2-core Turbo Boost beyond 6GHz with a single click, delivering extreme performance effortlessly.
TVS
SOLID PIN DESIGN
STAINLESS STEEL IO
OCP PROTECTION
GROUNDING STRUCTURE
SOLID PIN DESIGN
STAINLESS STEEL IO
OCP PROTECTION
GROUNDING STRUCTURE
TRANSIENT VOLTAGE SUPPRESSORS (TVS)
Transient Voltage Suppressors (TVS) are safety devices used to protect against excessive voltage. All motherboard models of MSI are equipped with TVS. When the voltage abnormally rises, the TVS switches from a high-resistance state to a low-resistance state, diverting the excessive voltage to ground. This helps prevent circuit damage caused by high voltage.
SOLID PIN DESIGN
The 4-pin, 8-pin, and 24-pin power connectors of MSI motherboards are all designed with solid pins. The solid pin design allows for a more stable transmission of 12V power to the CPU, even when handling high current loads.
ADVANTAGES OF SOLID PIN POWER CONNECTOR
Improved stability : Larger contact area enhances stability during power delivery.
Low impedance : Solid pins offer low impedance, enabling efficient power flow.
Strong durability : The solid pin design ensures strong durability, capable of withstanding demanding conditions.
Suitable for high-current applications.
Low impedance : Solid pins offer low impedance, enabling efficient power flow.
Strong durability : The solid pin design ensures strong durability, capable of withstanding demanding conditions.
Suitable for high-current applications.
ANTI-CORROSIVE STAINLESS STEEL IO SHIELD
An extra layer of sponge materials along with corrosive resistance IO Shield to help improve static electricity and reduce electromagnetic radiation noise from the system as well as much more durable compare to traditional IO Shields.
The image above is an illustrative reference. Please refer to specification pages for more details.
OVER CURRENT PROTECTION
MSI motherboards prioritize safety with the embedded Overcurrent Protection (OCP), ensuring crucial components such as the USB ports, DDR memory, PWM IC, and CPU are shielded from excessive current. This proactive defense mechanism curtails the risk of damage or malfunction due to power surges, promoting long-term system stability. This commitment to safeguarding your hardware underscores MSI's dedication to producing motherboards that prioritize durability and stability.
THE GROUNDING STRUCTURE OF POWER PHASES
The grounding structure of power phases is the MSI's exclusive design. This patented design enables to suppress the electromagnetic interference (EMI) generated by the power phases and helps to efficiently conduct heat to the copper plane with grounding properties.
PERFORMANCE
PERFORMANCE
EXPANSION
MEMORY
BIOS & SOFTWARE
MEMORY
BIOS & SOFTWARE
LIGHTNING GEN 5 PCI-E
STORAGE
USB
USB4 EXPANSION CARD
STORAGE
USB
USB4 EXPANSION CARD
LIGHTNING GEN 5 PCI-E WITH STEEL ARMOR
LIGHTNING GEN 5 PCI-E
Doubling over the previous generation, the bandwidth of a x16 interface can reach 128GB/s.
SMT PCIE 5.0 SLOT
The advanced SMT(Surface Mount Technology) PCIE slot diminish interference and electrical noise, fully support the PCI-E 5.0 signal.
HEAVY SOLDERED CONNECTIONS
Secure to the motherboard with extra solder points and support the weight of heavy graphics cards.
FAST AND FUTURE-READY STORAGE
MSI MPG series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies.
1x
4x
6x
DOUBLE BANDWIDTH WITH LIGHTNING USB 3.2 GEN 2X2 20G
Using USB 3.2 devices has never been faster! MPG Z790 series motherboards offer a wide variety of options to connect and boost your USB devices, offering never before seen USB speeds up to 20Gb/s when connecting the Rear USB Type-C.
MSI USB4 PD100W EXPANSION CARD
MSI has adopted the USB4 technology on the latest USB4 PD100W Expansion Card. All the versatile functions are brought together in this powerful card. Let's dive into a new era!
DDR5
XMP
MEMORY EXTENSION MODE
XMP
MEMORY EXTENSION MODE
LATEST DDR5 MEMORY WITH SMT SLOT
A huge step of DDR performance enhancement with the latest DDR5 memory. Combines with dedicated SMT welding process and MSI Memory Boost technology, MPG Z790 CARBON MAX WIFI II is ready to deliver the world class memory performance.
The advanced SMT(Surface Mount Technology) welding process reduces the defect rate of slot solder joints, electromagnetism, and interference. Combining with exclusive Memory Boost technology allows MSI motherboards to deliver the clean and pure high-frequency DDR5 signal.
EASY OVERCLOCKING WITH XMP PROFILE
The XMP (Extreme Memory Profiles) in MSI BIOS are tested and certified by MSI OC LAB. It is easy to enable with auto power settings to get the best memory speed and stability.
MEMORY EXTENSION MODE
Memory Extension Mode provides optimized memory parameters for enhanced capability at the same frequency, achieving lower latency and higher performance. Furthermore, Memory Extension Mode can combine XMP profiles to maximize memory frequency, enabling users to effortlessly discover the best configuration based on their requirements.
Performance Mode, Benchmark Mode, and Memtest Mode provide users with the flexibility to swiftly identify the ideal configuration tailored to their requirements and memory overclocking capabilities.
MSI CENTER
CLICK BIOS 5
AIDA64
NORTON 360
RESIZABLE BAR
CLICK BIOS 5
AIDA64
NORTON 360
RESIZABLE BAR
MSI brand new MSI Center unifies a suite of MSI software utilities into a single centralized application. Take control of advanced motherboards features and unleash endless possibilities.
Get more from a loaded BIOS designed for ease of use. Fine-tune the motherboard for gaming performance, efficiency, or overclocking world records!
XMP
Choose from a preset XMP profile and automatically overclock compatible DDR memory.
VMD (VOLUME MANAGEMENT DEVICE)
Enable direct control and management of NVMe SSDs from the PCIe bus without additional hardware adaptors.
M-FLASH
Conveniently flash or upgrade the BIOS in a few minutes from the CMOS Setup Utility.
HARDWARE MONITOR
Get immediate access to your critical hardware information in real-time including temperature, memory capacity, clock speed, and voltage.
MEMORY TRY IT
Get extreme speed out of your system memory and get more performance.
SEARCH & FAVORITES
A permanent search & favorite option in the top right corner moves you through the BIOS menus quickly.
EXCLUSIVE UI OF AIDA64 EXTREME
MSI motherboards provide 60 days free trial of AIDA64 Extreme - MSI edition. AIDA64 Extreme is an almighty application for system information, diagnostics and benchmarks. With the application, you can monitor the detailed hardware and software information on PC and save it to file in multiple formats such as CSV and HTML.
OPT-IN TO CYBER SAFETY WITH NORTON 360 DELUXE
Multiple layers of protection for your devices, online privacy features including our Secure VPN, plus Dark Web Monitoring - all in a single solution. With MSI motherboards, you can enjoy a 60-day free trial of Norton 360 Deluxe.
Up to 50 GB PC cloud backup
Real time Threat protection and Smart Firewall
Password manager
PC SafeCam
Real time Threat protection and Smart Firewall
Password manager
PC SafeCam
The MSI trial offer is not available for existing Norton customers. If you have an active Norton subscription, you will need to opt-out of the existing subscription to be eligible for this offer. For Important Subscription, Pricing and Offer Details, please refer to NortonLifeLock License and Services Agreement. NortonLifeLock Product and Service Privacy Notices.
Resizable BAR (Re-Size BAR) is an advanced PCI Express feature that enables the CPU to access the entire GPU frame buffer at once and improve performance.
CONNECTIVITY
CONNECTIVITY
AUDIO
MYSTIC LIGHT
NETWORKING
MYSTIC LIGHT
NETWORKING
AUDIO BOOST 5
ISOLATED ANALOGY STRUCTURE
ISOLATED ANALOGY STRUCTURE
AUDIO BOOST 5
HIGH PERFORMANCE ALC4080 AUDIO PROCESSOR
HIGH QUALITY AUDIO CAPACITORS
HIGH QUALITY AUDIO JACKS WITH S/PDIF
DEDICATED HEADPHONE AMPLIFIER
ISOLATED AUDIO SIGNAL
DE-POP PROTECTION
HIGH QUALITY AUDIO CAPACITORS
HIGH QUALITY AUDIO JACKS WITH S/PDIF
DEDICATED HEADPHONE AMPLIFIER
ISOLATED AUDIO SIGNAL
DE-POP PROTECTION
THE ISOLATED ANALOGY STRUCTURE FOR AUDIO CONNECTORS
To provide clear voice, MSI develops a unique structure – Isolated Analogy Structure. The external metal framework of the audio connectors is separated from the internal layout, which ensures the sound quality crisp.
The image above is an illustrative reference. Please refer to specification pages for more details.
MYSTIC LIGHT
SYNCHRONIZE
DEDICATED JAF HEADER
SYNCHRONIZE
DEDICATED JAF HEADER
GLOW YOUR PC
Splash on some color and vibrant RGB lighting effects using MSI Mystic Light with 16.8 million colors and fancy LED effects. MSI Mystic Light provides you complete control of RGB lighting of your PC in one software.
EXTEND YOUR RGB EXPERIENCE WITH EASE
Add more color if you want! Mystic Light Extension pin header provides an intuitive way to control additional RGB strips and other RGB peripherals added to a system, without needing a separate RGB controller.
A-RAINBOW V2
RGB
AMBIENT LINK
RGB
AMBIENT LINK
*Gen2 device only supports 7 RGB themes
ADDITIONAL FAN AND ARGB HEADER
The MSI exclusive JAF header allows MSI's own Daisy-Chained fan to operate with a single cable. Alternatively, the JAF header can be converted into additional ARGB gen 1 and FAN headers by using a dedicated Y-cable, streamlining and optimizing the entire building process.
5G LAN & WI-FI 7
WIFI 7 SOLUTION
WIFI 7 SOLUTION
HIGH-BANDWIDTH AND LOW-LATENCY NETWORK
MSI's premium network solution provides incredible data transfer speed for demanding users.
Wi-Fi 7
Bluetooth 5.4
5G LAN
Exclusive magnetic antenna
Bluetooth 5.4
5G LAN
Exclusive magnetic antenna
THE NEXT GEN WI-FI SOLUTION – WI-FI 7
Wi-Fi 7 is the latest wireless solution that takes a huge leap forward with multiple improvements to meet the traffic demand brought and the growing number of wireless devices.
*Windows 11 compatibility only
Wi-Fi 7 (802.11be) introduced higher speeds, wider channels, improved efficiency, and reduced latency over Wi-Fi 6 (802.11ax). It also improved battery life and provided better performance in crowded environments.
| Brand | MSI |
|---|---|
| Warranty | 1 Year Manufacturer |
| Shipping | Same Day From Lahore |
