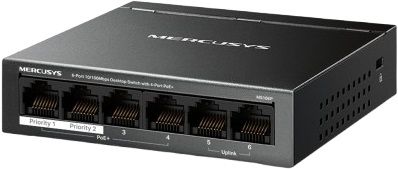

Mercusys MS106P 6-Port 10/100Mbps Desktop Switch with 4-Port PoE+
6-Port 10/100Mbps Desktop Switch with 4-Port PoE+
MS106P
Long-Range up to 250 m丨 Durable Metal Casing丨 67W PoE Budget
4 PoE+ Ports (67 W Budget) for Network Deployment
Ports 1-4 support PoE+, and each of them supports a maximum of 30 W and is compliant with the 802.3af/at Powered Devices. MS106P provides 2 ports without PoE+ for uplink devices, one of which is used to connect to the Internet and the other to connect to the NVR. The total 67 W PoE power budget* for the 4× PoE+ ports can be applied in various scenarios, including surveillance, offices, dormitories, and small businesses, since MS106P is fully compatible with devices such as IP cameras, access points, IP phones, PCs, video recorders, and etc.
Power over Ethernet: Two Cables in One
Traditional Switches
Power Data
MS106P
Power + Data
No Fuss
No need for electricians; simplify installation and deployment.
Cost-Efficiency
Getting rid of extra cables and power adapters will save money on infrastructure.
Flexibility
Deployment in complex situations is made possible by more placement possibilities.
Power Management
Improves power usage while intelligently protecting your gadgets from power surges.
IEEE 802.3af/at
PoE ports compliant with the 802.3af/at Powered Devices.
Long-Range up to 250 m with Extend Mode
Extend Mode** increases PoE transmission distance to 250 m. MS106P has four long-range ports with PoE+. Turn on the Extend Mode and make it ideal for installing surveillance cameras over wide areas.
250m
Traffic Separation
With only one click, isolation mode divides traffic for ports 1-4 to prevent snooping/tampering and isolate broadcast storms for greater protection. MS106P provides 2× uplink ports when turning on the isolation mode.
Port Prioritization
Prioritizing the data of specific ports would ensure the high quality of delicate applications, such as voice and video, in crucial business domains.
PoE Auto Recovery
The switch continuously detects data transmission with PoE-powered devices (PD). When a PD stops sending data packets to the switch for an extended length of time, the switch will reboot it automatically.
Plug and Play
MS106P offers auto-negotiation (10/100M) and automated MDI/MDIX. There is no additional configuration needed. It is simple to use and saves time and effort.
Durable and Silent
MS106P's durable metal case allows for efficient heat dissipation, excellent signal interference prevention, reliable equipment stability, and a long network life.
Mount
*PoE budget calculations are based on laboratory testing. Actual PoE power budget is not guaranteed and will vary as a result of client limitations and
