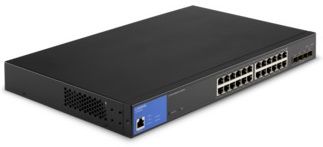

Linksys LGS328MPC-EU 24-Port Managed Gigabit PoE+ Switch with 4 10G SFP+ Uplinks 410W

FEATURES

1G SFP OR 10G SFP+ UPLINK PORTS

Enable fast, dedicated connections back to your core network. Our 8-Port switches come with 2x 1G SFP uplinks while our 24/48-port switches come with 4x 10G SFP+ uplinks.

INTEGRATED POWER OVER ETHERNET PLUS (POE+)

Makes installation simple and inexpensive by eliminating the need for additional power cables and nearby power outlets. Backwards compatible with 802.3af (PoE) standard.

NETWORK EXPANSION FEATURES

Build a mesh of switches easily with features like Spanning Tree Protocol (STP) and storm control. They help control planned or inadvertent cable loops so you can expand your network with confidence.

ADVANCED NETWORK SECURITY

Ensure data passes to authorized clients only with port authentication. Advanced DHCP snooping and IP-MAC binding functions assure network integrity and help prevent attacks.

QUALITY OF SERVICE (QOS) TRAFFIC PRIORITIZATION

Prioritize traffic with numerous QoS features. Ideal for real-time voice and video applications as well as high bandwidth graphic or video uploads and downloads.

Larger Power Budgets for more PoE Devices

With Linksys' new line of smart managed PoE+ switches, you get more total power budget than ever before. That means powering more PoE devices with less switches, driving more value in your network deployment.

Dedicated Connections Back to the Core

Use dedicated SFP uplink ports to connect to other switches or back to your core network instead of taking away from one of your existing PoE+ ports. Plus, with our 24 and 48 port switches, you get high speed 10G SFP+ ports to ensure maximum bandwidth capacity for your edge devices.

Advanced Security, QoS, and Static Routing

Secure and optimize your smart managed network with advanced security and QoS features. On top of that, we've added static routing for free, typically only found in higher end switches.

How Does It Work?

Linksys Managed Gigabit PoE+ switches can power PoE+ enabled devices such as surveillance cameras, access points, door access control systems, VoIP phones and ProAV systems. This will eliminate the need for additional power cables and outlets, making installation simpler and less expensive.

TECHNICAL SPECS

Model Name:

LGS328MPC

Routing:
Static Routing, IPv4 (63 max entries), IPv6 (21 max entries)

Ports:

24 Gigabit Ethernet

4 10G SFP+

Memory:

512MB

LEDs:

Power, Fault, PoE Max, LAN Mode, PoE Mode

Forwarding Rate:

95.4 Mpps

Switching Capacity:

128 Gbps

MAC Address Table Size:

16K

Jumbo Frame (FE, GE):

12Kbytes

Fans:
2, 8200 rpm (at full speed)

Dimensions (LxWxH):

440 x 257 x 44 mm

17.32 x 10.12 x 1.73 in

Weight:

3798 g (8.73 lb)

Power Consumption:
500.46W

Power Dedicated to PoE+:

410W

Power Input:

100–240V

50–60 Hz

7A

Power Saving:

EEE

Operating Temperature:

0 to 50°C (32 to 122°F)

Storage Temperature:

-20 to 70°C (-4 to 158°F)

Operating Humidity:

10 to 90% RH

Storage Humidity:

5 to 95% RH (non-condensing)

Spanning Tree:

IEEE 802.1d Spanning Tree, IEEE 802.1w Rapid Spanning Tree, IEEE 802.1s Multiple Spanning Trees (16 instances)

Link Aggregation:

IEEE 802.3ad LACP, up to 8 groups with up to 8 ports per group

VLAN

Port-based and 802.1q VLANs, Management VLAN, Guest VLAN support

Number of VLANs Supported

256 active VLANs (4,096 range)

Auto Voice VLAN:

Voice traffic is automatically assigned by OUI to a voice-specific VLAN and treated with appropriate levels

IGMP Snooping:

IGMP (v1/v2/v3) snooping provides for fast client joins and leaves of multicast streams and limits bandwidth-intensive video traffic to only the requestors; supports 256 multicast groups

HOL Blocking Prevention:

Head of line (HOL) blocking prevention

Port Mirroring:

Traffic on multiple ports (up to 3 ports) can be mirrored to another port for analysis with a network analyzer

Security Features:

802.1x Radius authentication

DHCP snooping

IP-MAC binding

Port Security (256 max entries per port)

DOS Attack Prevention

Port Isolation (Protected Ports)

Storm Control:

Support broadcast/unknown multicast/unknown unicast 16kbps~1000Mbps: in steps of 16kbps

Quality Of Service:

8 hardware queues

Strict, Weighted Round Robin (WRR)

Port-based, 802.1p priority-based, IPv4/v6 IP DSCP-based

Access Control:

Ingress, MC Based ACL, IPv4 Based ACL, IPv6 Based ACL, ACL Binding, Action: permit/deny

RMON:

Embedded remote monitoring (RMON 1, 2, 3, 9) software agent support for enhanced traffic management, monitoring, and analysis

Management Interface:

HTTP

HTTPS

Other Management:

Telnet, SSH, DHCP client, system log, configuration upload and backup via HTTP or TFTP, PING, Traceroute, dual images, SNTP

SNMP:

Version 1

Version 2c

Version 3

Firmware Upgrade:

Web Browser (HTTP/HTTPS)

TFTP

Rate Limiting:

Rate limit according to network speed, 12kbps~1000Mbps: in steps of 16kbps
