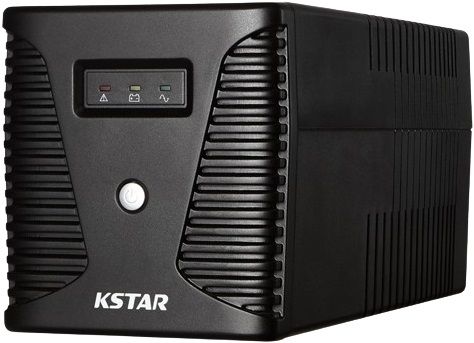

KStar UA120 Line 1200VA/720W Interactive UPS
SKU
S64170
Category: UPS
UA series line interactive UPS designed with excellent charging mode. It not only offers great comprehensive power protection against surges and spikes, but also provides pure voltage with AC voltage stabilizer. It is easy to install&operate. With compact size and built-in self-diagnostic function, It is an ideal backup power for termianl equipment, PC, station, SOHO equipments.
General Features
AVR boost and buck
Cold start function
Smart RS-232/USB interface for power management
Built-in self-diagnostic function
Modem/LAN internet protection
Generator compatible(Optional)
Technical Specification
|
Model
|
UA40 | UA60 | UA80 | UA100 | UA120 | UA150 | UA200 | UA240 | UA300 |
|
Capacity
(VA/Watts) |
400 / 240 | 600/ 360 | 800 /480 | 1000/ 600 | 1200/ 720 | 1500 / 900 | 2000 / 1200 | 2400/ 1440 | 3000 / 1800 |
|
INPUT
|
|||||||||
|
Nominal Input
Voltage |
110/120Vac or 220/230/240 Vac | ||||||||
|
Operating
Voltage Range |
81-145Vac/162-290 Vac | ||||||||
|
Operating
FrequencyRange |
50/60 Hz (1±10%) | ||||||||
|
OUTPUT
|
|||||||||
|
Output Voltage
range (Batt. Mode) |
Simulated Sinewave at nominal voltage ±10% | ||||||||
|
Frequency Range
(Batt. Mode) |
50 Hz or 60 Hz ± 1 Hz | ||||||||
|
Transfer Time
|
Typical 2-6 ms, 10ms max. | ||||||||
|
BATTERY
|
|||||||||
|
Battery Type
& Number |
12V/4.5Ah x 1 | 12V/7Ah x 1 | 12V/9Ah x 1 | 12V/7Ah x 2 | 12V/7Ah x2 | 12V/9Ah x 2 | 12V/9Ah x 2 | 12V/7Ah x 4 | 12V/9Ah x 4 |
|
Typical Recharge
Time |
6-8 hours ( To 90% capacity) | ||||||||
|
PROTECTION
|
|||||||||
|
Full Protection
|
Overload and overcharge protection | ||||||||
|
INDICATORS
|
|||||||||
|
Indicators
|
AC Mode, Battery Mode, Load Level, Battery Level | AC Mode, Battery Mode, Load Level, Battery Level, Input Voltage, Output Voltage, Overload, Fault, Battery Low |
|||||||
|
ALARM
|
|||||||||
|
Battery Mode
|
Sounding every 10 seconds | ||||||||
|
Battery Low
|
Sounding every second | ||||||||
|
Overload
|
Sounding every 0.5 second | ||||||||
|
Battery
Replacement Alarm |
Sounding every 2 seconds | ||||||||
|
Fault
|
Continuously sounding | ||||||||
|
Management
|
|||||||||
|
USB & RS-232
port(Optional) |
Supports Windows® 2000/2003/XP/Vista/2008, Windows® 7, Linux, Unix, and MAC | ||||||||
|
Environment
|
|||||||||
|
Operating
Temperature |
0- 40°C | ||||||||
|
Humidity Range
|
0-95 % (Non-condensing) | ||||||||
|
Noise Level
|
<40db (1 meter from surface) | ||||||||
|
PHYSICAL
|
|||||||||
|
Dimension,
W x D x H (mm) |
101×298×142 | 149.3×338×162 | 158×380×198 | 144×432.5×207 | |||||
|
Net Weight (kg)
|
3.55 | 4.25 | 4.9 | 7.8 | 8 | 11.1 | 11.5 | 20 | 23 |
|
STANDARDS
|
|||||||||
|
Safety
|
IEC/EN62040-1;IEC/EN60950-1 | ||||||||
|
EMC
|
IEC/EN62040-2;IEC61000-4-2;IEC61000-4-3;IEC61000-4-4;IEC61000-4-5;IEC61000-4-6;IEC61000-4-8 | ||||||||
| Brand | Non Branded |
|---|---|
| Warranty | 1 Year Manufacturer |
| Shipping | Same Day From Lahore |
