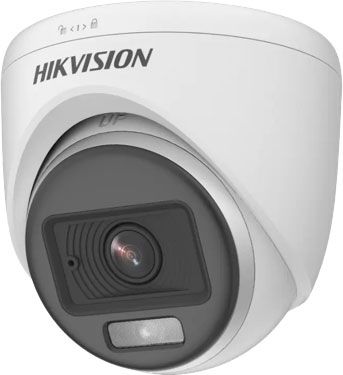

Hikvision DS-2CE70KF0T-PFS 3K ColorVu Indoor Audio Fixed Turret Camera
SKU
U60872
Category: CCTV
Camera
Image Sensor3K CMOS
Signal SystemPAL/NTSC
Resolution2960 (H) × 1665 (V)
Frame Rate
Min. Illumination0.001 Lux @ (F1.0, AGC ON), 0 Lux with white light
Shutter TimePAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
Lens2.8 mm, 3.6 mm fixed focal lens
Field Of View
Lens MountM12
Light AlarmSolid Light Alarm (White Light)
Day & Night24/7 Color Imaging
WDR (Wide Dynamic Range)Digital WDR
Angle AdjustmentPan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°
White LightAuto/Off
Image ModeSTD/HIGH-SAT/HIGHLIGHT
AGCYes
Day/Night ModeColor
White BalanceAuto/Outdoor/Global/Manual
AE (Auto Exposure) ModeBLC;HLC;Global;HLS;DWDR
Noise Reduction2D DNR
LanguageEnglish
FunctionDefective Pixel Correction;Sharpness;Mirror;Contrast;Brightness;Anti-Banding;Smart Light
Interface
Video OutputSwitchable TVI/AHD/CVI/CVBS
Audio InBuilt-in mic
General
Operating Conditions-40°C to 60°C (-40°F to 140°F), Humidity: 90% or less (non-condensing)
Power Supply
ConsumptionMax. 2.5 W
MaterialPlastic
White Light RangeUp to 20 m
CommunicationHIKVISION-C
DimensionΦ 85.02 mm × 81.25 mm (Φ 3.35" × 3.2")
WeightApprox. 165.5 g (0.36 lb.)
Image Sensor3K CMOS
Signal SystemPAL/NTSC
Resolution2960 (H) × 1665 (V)
Frame Rate
TVI: 3K@20fps, 4 MP@25fps/30fps, 1080p@25fps/30fps
AHD: 5 MP@20fps, 4 MP@25fps/30fps
CVI: 4 MP@25fps/30fps
CVBS: PAL/NTSC
Min. Illumination0.001 Lux @ (F1.0, AGC ON), 0 Lux with white light
Shutter TimePAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
Lens2.8 mm, 3.6 mm fixed focal lens
Field Of View
2.8 mm, horizontal FOV: 102°, vertical FOV: 56°, diagonal FOV: 122°
3.6 mm, horizontal FOV: 80°, vertical FOV: 45°, diagonal FOV: 96°
Lens MountM12
Light AlarmSolid Light Alarm (White Light)
Day & Night24/7 Color Imaging
WDR (Wide Dynamic Range)Digital WDR
Angle AdjustmentPan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°
White LightAuto/Off
Image ModeSTD/HIGH-SAT/HIGHLIGHT
AGCYes
Day/Night ModeColor
White BalanceAuto/Outdoor/Global/Manual
AE (Auto Exposure) ModeBLC;HLC;Global;HLS;DWDR
Noise Reduction2D DNR
LanguageEnglish
FunctionDefective Pixel Correction;Sharpness;Mirror;Contrast;Brightness;Anti-Banding;Smart Light
Interface
Video OutputSwitchable TVI/AHD/CVI/CVBS
Audio InBuilt-in mic
General
Operating Conditions-40°C to 60°C (-40°F to 140°F), Humidity: 90% or less (non-condensing)
Power Supply
12 VDC ± 25%,
*You are recommended to use one power adapter to supply the power for one camera.
ConsumptionMax. 2.5 W
MaterialPlastic
White Light RangeUp to 20 m
CommunicationHIKVISION-C
DimensionΦ 85.02 mm × 81.25 mm (Φ 3.35" × 3.2")
WeightApprox. 165.5 g (0.36 lb.)
| Brand | Hikvision |
|---|---|
| Warranty | 7 Day Replacement |
| Shipping | Same Day From Lahore |
