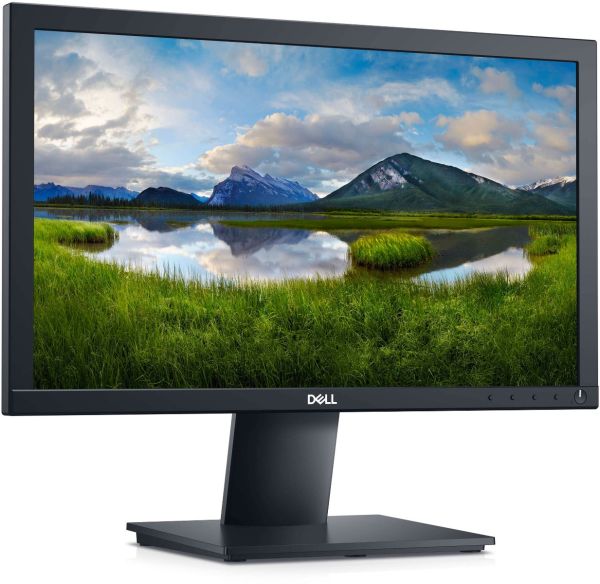

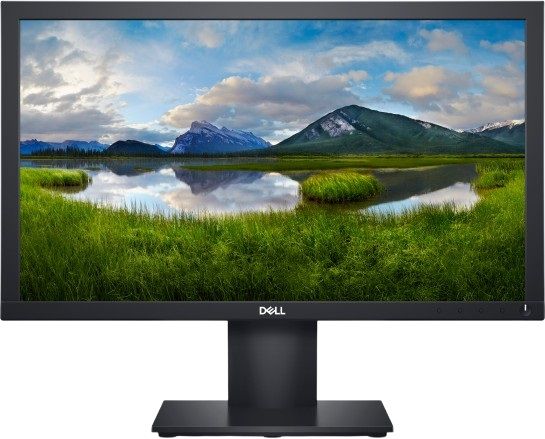

Dell 20 inch LED Monitor E2020H

Elevate your everyday display

An affordable 19.5" monitor made for your daily workflow. Featuring an elegant design, 1600x900 resolution and Dell Display Manager.



Display

Diagonal Viewing Size:

49.53 cm (19.5 inches)

Horizontal:

432.96 ± 0.96 mm (17.05 inches)

Vertical :

238.05 ± 1.71 mm (9.37 inches)

Maximum Preset
Resolution:

1600 x 900 at 60 Hz

Aspect Ratio :

16:9

Pixel Pitch:

0.27 mm x 0.27 mm

Pixel Per Inch (PPI) :

94

Brightness:

250 cd/m² (typical)

Color Support:

Color gamut (typical): 83% (CIE1976) 72% (CIE1931) Color depth: 16.7 Million

Contrast Ratio :

1000:1 (typical)

Viewing Angle:

160°/170°

Response Time:

5 ms typical (Normal) (gray to gray)

Panel Type:

TN (Twisted Nematic)

Display Screen Coating :

Anti-Glare

Backlight Technology :

LED

ComfortView with Flicker-free screen:

Yes

Dell Display Manager Compatibility:

Yes

Remote Asset Management :

Yes, via Dell Command I Monitor

GSA/TAA:

No

Optional Soundbar:

AC511 - usb powered via PC AE515 Skype for Business Certified

Connectivity

Connectors

1 X VGA 1 X DisplayPort 1.2

HDCP Support

DisplayPort HDCP 1.2

Security

Adjustability

Tilt Only (-5° to 21°)

Security

Security lock slot (cable lock sold separately)

Flat Panel Mount Interface

VESA (100 mm)

Dimensions & Weight

Dimensions (with stand)

Height

368.96 mm (14.53 inches)

Width

471.52 mm (18.56 inches)

Depth

171.0 mm (6.73 inches)

Weight

Weight (panel only - for VESA mount/ no cables)

2.20 kg (4.85 lb)

Weight (monitor + cables)

2.94 kg (6.48 lb)

Weight (with packaging)

3.94 kg (8.68 lb)

Power

AC input voltage/frequency/current

100 VAC to 240 VAC / 50 Hz or 60 Hz ± 3 Hz / 0.7 A (typical)

Power Consumption (Operational)

11W (Typ). 14W (Max). 10.7W (Energy Star)

Power Consumption Stand by/Sleep

Less than 0.3W

Optional Service Plan

Dell ProSupport

Environmental Compliance

ENERGY STAR®, EPEAT® registered where applicable, TCO Certified Display

In The Box

What's in the Box

Components

Monitor with stand

Cables

Power cable   1 X DP Cable (DP to DP)  1 X VGA Cable (EMEA and Japan only)  1 X VESA screw cover

Documentation

Quick Setup Guide Safety and regulatory information

Features & Design

All the essentials, and then some

Maximize your workspace:

 A thin profile and improved cable management create a smaller footprint, lending itself to a clean, uncluttered desk.

Enhanced views:

 The 1600x900 resolution is ideal for everyday tasks, while ComfortView is ready for extended viewing periods. It reduces up to 60% of harmful blue light emissions.

Versatile connections:

 Our E Series monitors accommodate legacy and non-legacy systems with convenient connectivity options like VGA and DP ports. Your workspace will be completely customized to your needs.

Adapts to your needs:

 Make your workspace your own with VESA-compatible mounts and stands.

Improved Dell Display Manager

Productive at every level:

 Dell Display Manager’s (DDM) Easy Arrange feature lets you quickly tile and view your applications side by side across one or more connected screens for multitasking efficiency. And with the improved DDM, you’ll get even more preset layouts.

Seamless transitions:

 The auto-restore feature remembers where you left off, so applications will go back to where you left them, even after you’ve unplugged.

The key to convenience:

 Shortcut keys can save you even more time, letting you easily configure your display management settings so you can get to work faster.

More ways to manage:

 Asset management reports allow IT managers to quickly capture and track monitor information as well as configure multiple monitors at once through a single setup.

Eco-friendly inside and out

Guaranteed green:

 Compliant with the latest Energy Star® standards, the E Series monitors meet stringent energy efficiency requirements while in sleep, on and off modes. They’re also TCO-certified.

Energy reducing:

 Save energy with PowerNap, a feature that dims or puts the monitor to sleep when not in use.

Clean disposal:

 Composting or recycling the packaging is easy since it’s made with at least 25% of recycled cardboard.

Connectivity Options

Ports & Slots:

1. Power Port | 2. DP Port 1.2 | 3. VGA Port

Cables Included:

1 x Power cable 1 x DisplayPort cable
