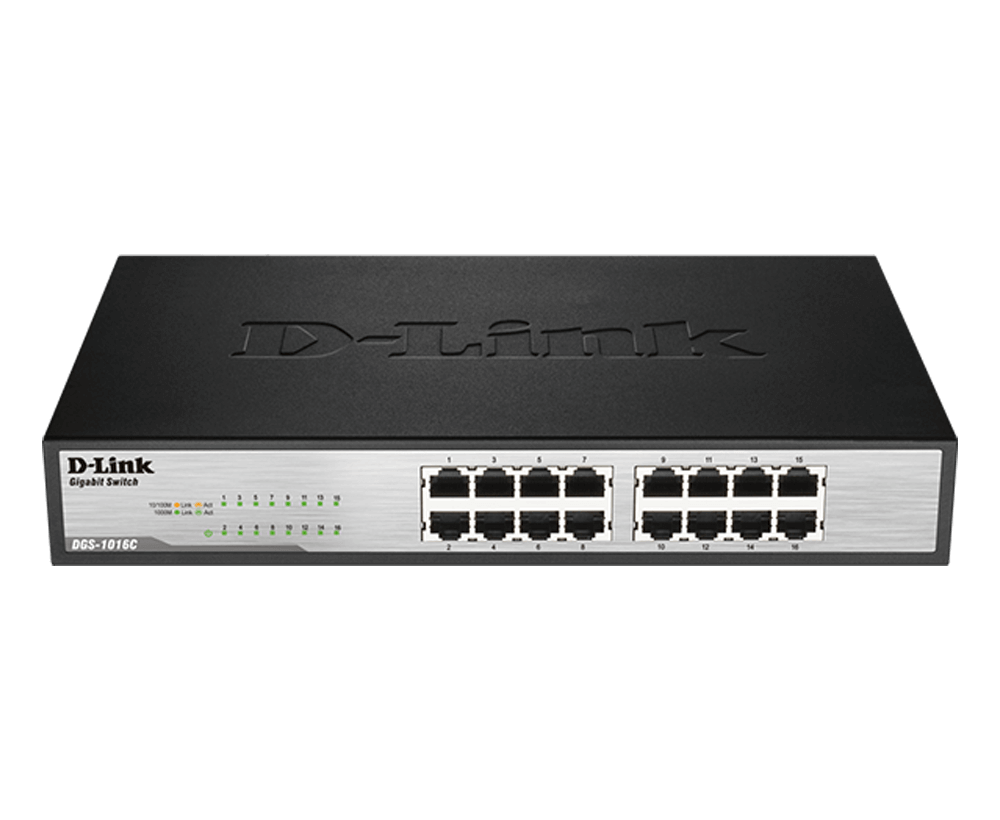

D-Link 16-Port Gigabit Unmanaged Switch - DGS-1016C
The DGS-1016C lets you enjoy fast wired connectivity with 16 Gigabit LAN ports, and easy Plug-and-play installation. It even reduces power to a port when there is no traffic, and optimizes power usage for a port for the length of cable connected to it, giving you more energy efficiency in your SOHO or SMB network.
With data transfer speeds of up to 2000 Mbps at full duplex, these switches are ideal for quick file transfers, online gaming and smooth streaming media. They feature easy-to-access Ethernet ports with LED indicators per port to easily distinguish link status. Auto MDI/MDIX crossover makes connection a cinch; just plug in your cables and you’re ready to go.
Conserve Energy
The DGS-1016C implements 802.3az Energy Efficient Ethernet, which saves energy and reduces heat automatically without sacrificing performance or functionality. The switch can detect when a connected computer is shut down or when there is no Ethernet traffic and can automatically reduce the power used for that port, cutting power usage substantially. In addition, the switch optimizes power usage for each port for the length of cable connected to it, using only as much power as is required. Both of these features work together to help you save power automatically.
Reliable Plug and Play Installation
The DGS-1016C is a Plug-and-Play device that requires no configuration, so setup is simple and hassle-free, and you can easily connect multiple computers, share files, music, and video across your home or small office network, or even create a multiplayer gaming environment. 802.3x flow control on each port minimizes dropped packets when the port’s receiving buffer is full, giving you a more reliable connection for all of your connected devices. All ports on the switch have up to 4 kV surge protection in order to improve network reliability.
Smooth Streaming
These switches support QoS, which prioritizes network traffic so that time-sensitive data is delivered efficiently, even during bursts of high data traffic. This helps ensure an optimal experience for streaming media and VoIP calls.
Specs
|
Acoustic
|
0 dB |
|---|---|
|
Comply with RoHS 6
|
Yes |
|
Power Saving
|
By Cable Length By Link Status |
|
Control
|
802.3x Flow |
|
Dimensions
|
282.2 x 178 x 44.5 mm (11.11 in. x 7.01 in. x 1.75 in.) |
|
Energy Efficiency Ethernet (EEE)
|
Yes |
|
FAN
|
Fanless |
|
Head-of-line (HOL) Blocking Prevention
|
Yes |
|
Humidity
|
Operating: 10% ~ 90% RH Storage: 5% ~ 95% RH |
|
Interfaces
|
16 x 1000Base-T Auto MDI/MDIX |
|
Jumbo Frame
|
9,216 Bytes |
|
MAC Address Table Size
|
8000 |
|
Maximum Forwarding Rate
|
23.808 Mpps |
|
Maximum Heat Dissipation
|
33.554 BTU/h |
|
Maximum Power Consumption
|
9.3 watts |
|
MTBF
|
208,124 hours |
|
Packet Buffer Size
|
256KBytes |
|
Power Input
|
AC:100 ~ 240 V |
|
Standby Power Consumption
|
4.48 watts |
|
Switching Capacity
|
32 Gbps |
|
Temperature
|
Operating: 0 ~ 40 °C Storage: - 40 ~ 70 °C |
|
Weight
|
1.06 kg |
