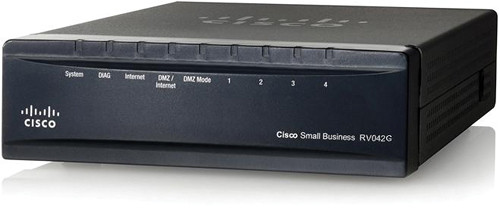

Cisco RV042G Dual Gigabit WAN VPN Router (RV042G)
Cisco RV042G-K9-NA
The RV042G Dual Gigabit WAN VPN Router from Cisco features four Gigabit Ethernet ports, one Internet port and one DMZ Internet port. The four Gigabit Ethernet ports are capable of handling data transfer speeds up to 800 Mbps while the Internet port is an RJ-45 port designed to connect the router to the Internet. The DMZ/Internet port also located on the back of the router is a port designed to add an additional layer of security to a LAN providing an external attacker with restricted access to equipment in the DMZ.
Dual Gigabit Ethernet WAN ports for load balancing and/or business continuity
Built-in 4-port Gigabit Ethernet switch
Enhanced security features including Proven stateful packet inspection (SPI) firewall and hardware encryption
High-capacity, high-performance IP Security (IPsec) VPN capabilities
Intuitive, browser-based device manager and setup wizards
Cisco RV042G-K9-NA Specs
Specifications |
|
|---|---|
Ports |
4 x 10/100/1000 RJ-45 ports 1 x 10/100/1000 RJ-45 Internet port 1 x 10/100/1000 RJ-45 DMZ/Internet port |
Dual WAN |
Configurable for Smartlink backup or load balancing |
Standards |
802.3, 802.3u IPv4 (RFC 791) IPv6 (RFC 2460) |
Network Protocols |
Dynamic Host Configuration Protocol (DHCP) server, DHCP client, DHCP relay agent Static IP Point-to-Point Protocol over Ethernet (PPPoE) Point-to-Point Tunneling Protocol (PPTP) Transparent bridge DNS relay, Dynamic DNS (DynDNS, 3322) IPv6 |
Routing Protocols |
Static Routing Information Protocol (RIP) v1, v2, and RIP for IPv6 (RIPng) |
Network Address Translation (NAT) |
Port Address Translation (PAT) Network Address Port Translation (NAPT), NAT traversal, one-to-one NAT |
Protocol Binding |
Protocols can be bound to a specific WAN port for load balancing |
Network Edge (DMZ) |
DMZ port, DMZ host |
Security |
|
|---|---|
Firewall |
SPI, denial of service (DoS), ping of death, SYN flood, land attack, IP spoofing, email alert for hacker attack |
Access Rules |
Up to 50 entries |
Port Forwarding |
Up to 30 entries |
Port Triggering |
Up to 30 entries |
Blocking |
Java, cookies, ActiveX, HTTP proxy |
Content Filtering |
Static URL blocking or keyword blocking |
Secure Management |
HTTPS, username/password, password complexity |
VLAN |
Port-based VLANs |
VPN |
|
|---|---|
IPsec VPN |
50 x IPsec site-to-site tunnels for branch office connectivity |
QuickVPN |
50 x QuickVPN tunnels for remote client access |
PPTP VPN |
5 x PPTP tunnels for remote access |
Encryption |
Data Encryption Standard (DES), Triple Data Encryption Standard (3DES), and Advanced Encryption Standard (AES) encryption; AES-128, AES-192, AES-256 |
Authentication |
MD5/SHA1 authentication |
IPsec NAT Traversal |
Supported for gateway-to-gateway and client-to-gateway tunnels |
VPN Pass-Through |
PPTP, Layer 2 Tunneling Protocol (L2TP), IPsec |
Advanced VPN |
Dead peer detection (DPD), Internet Key Exchange (IKE), split DNS, VPN backup |
Quality of Service (QoS) |
|
|---|---|
Prioritization Types |
Application-based priority on WAN port |
Service-based QoS |
Supports rate control or priority |
Rate Control |
Upstream/downstream bandwidth can be configured per service |
Priority Levels |
Each service can be mapped to one of 3 priority levels |
Performance |
|
|---|---|
NAT Throughput |
800 Mbps |
IPsec VPN Throughput |
75 Mbps |
Configuration |
|
|---|---|
Web User Interface |
Simple browser-based device manager (HTTP/HTTPS) |
Management |
|
|---|---|
Management Protocols |
Web browser, Simple Network Management Protocol (SNMP) v1 and v2c, Bonjour |
Event Logging |
Syslog, email alerts, VPN tunnel status monitor |
Upgradability |
Firmware upgradable through web browser, imported/exported configuration file |
Migration |
Migration utility available to convert the RV042 config file to a RV042G config file |
Other Specifications |
|
|---|---|
Power Supply |
12V 1A |
Certifications |
FCC Class B, CE Class B, UL, cUL, CB |
Operating Temperature |
32 to 104°F / 0 to 40°C |
Storage Temperature |
32 to 158°F / 0 to 70°C |
Operating Humidity |
10 to 85% non-condensing |
Storage Humidity |
5 to 90% non-condensing |
Dimensions (WxHxD) |
5.12 x 1.52 x 7.87" / 130 x 38.5 x 200 mm |
| Brand | Cisco |
|---|---|
| USB Ports | No port |
| Warranty | 1 Year Manufacturer |
| Shipping | 24 - 48 hrs |
| Detachable Antenna | No |
| LAN Ports | 4 |
| N Router | No |
