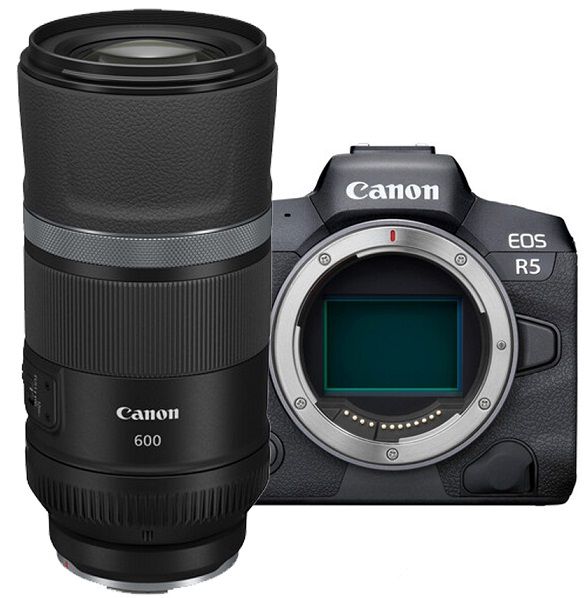

Canon EOS R5 Mirrorless Digital Camera Body RF 600mm f/11 IS STM Lens

Overview

45MP Full-Frame CMOS Sensor

DIGIC X Image Processor

8K30 Raw and 4K120 10-Bit Internal Video

Sensor-Shift 5-Axis Image Stabilization

RF-Mount Lens/Full-Frame Format

Fixed f/11 Aperture

Retractable, Locking Lens Barrel

Gapless Dual-Layer Diffractive Optics

CANON R5 REVIEWS

For the professional image-maker who needs resolution, speed, and video capabilities, there is the Canon EOS R5. Setting a new standard for versatility, this full-frame mirrorless camera features a newly developed 45MP CMOS sensor, which offers 8K raw video recording, 12 fps continuous shooting with a mechanical shutter, and is the first EOS camera to feature 5-axis sensor-shift image stabilization.

Beyond just resolution, the sensor also pairs with the refined DIGIC X image processor to usher in a new generation of Dual Pixel CMOS AF for quick, smooth, and intelligent focusing performance using 1053 selectable points that cover the entire field of view. This focusing system has also been updated to make use of Deep Learning technology for improved subject tracking as well as precise eye, face, and head-detection for both people and animals.

Complementing the imaging assets, the R5, while sporting a new design, also feels familiar to EOS 5-series users. An especially high-resolution 5.76m-dot electronic viewfinder provides a realistic 120 fps refresh rate while the rear touchscreen LCD monitor sports a vari-angle design to accommodate vlogging needs as well as benefit working from high and low angles. A top status LCD makes for an intuitive workflow and the camera also incorporates dual memory card slots—one CFexpress Type B, one SD UHS-II—along with Bluetooth and Wi-Fi wireless connectivity.

45MP Full-Frame Sensor and DIGIC X Processor

Built around a newly developed 45MP full-frame CMOS sensor, the EOS R5 offers both high-resolution stills and video output and the fine-tuned DIGIC X image processor complements this with a wealth of speed. Sensitivity from ISO 100-51200, which can be expanded to ISO 102400, suits working in a variety of lighting conditions while quick continuous shooting up to 12 fps with a mechanical shutter, or silent 20 fps with an electronic shutter, is ideal for working with moving subjects.

8K30 Raw and 4K120 Video Recording

Benefitting more than just stills, the 45MP full-frame sensor also enables impressively high-resolution DCI and UHD 8K 30 fps raw video recording internally along with 4K recording up to 120 fps in 4:2:2 10-bit with Canon Log. HDR-PQ recording is possible, too, in-camera HDR production and external recording, via the HDMI port supports a clean 4K output at up to 60 fps. Both All-I and IPB compression options are available, along with the ability to use Dual Pixel CMOS AF when shooting at up to 8K raw.

Dual Pixel CMOS AF II

An updated Dual Pixel CMOS AF II features 1053 selectable focusing points, which cover approximately 100% of the image frame for wide and even coverage. This focusing system offers smooth and fast focusing performance in a similar manner to how a camcorder acquires focus. This system integrates two separate photodiodes within each pixel to provide a broad and dense network of phase-detection gathering elements across a majority of the image sensor to reduce focus hunting for faster, more direct control of focus placement. When working with still imagery, this focusing system works to acquire focus quickly and accurately, making it ideally suited to shooting and tracking moving subjects so that critical focus is attained with each shot. When shooting video, a Movie Servo AF mode offers smooth and natural focusing when changing from different subjects or different distances within the scene, as well as the ability to specify tracking sensitivity, AF speed, and Face Tracking priority. Benefited by the Touch AF system, rack focus is possible simply by touching elements within the scene on the touchscreen in order to change focus in an intuitive manner. Subject tracking in movies is also heightened due to the Dual Pixel CMOS AF II system’s ability to recognize subjects and maintain focus when working within changing or cluttered scenery.

Subject tracking has also been benefitted through the use of Deep Learning technology, which helps to gradually refine the focusing system’s ability to quickly and accurately recognize both people and animal subjects. This technology also supports the more refined eye, face, and head detection functions, for both people and animals, that are well-suited for portraiture applications.

Sensor-Shift Image Stabilizer

A first for EOS cameras, the R5 incorporates five-axis sensor-shift image stabilization that compensates for up to an impressive eight stops of camera shake for truly effective compensation of camera shake to suit handheld shooting with slower shutter speeds. This stabilization system also works in concert with lens-based optical image stabilization for both native RF lenses and adapted EF lenses.

Body Design and Wireless Connectivity

High-resolution 5.67m-dot 0.5″ electronic viewfinder provides a bright and detailed means for eye-level viewing and the quick 120 fps refresh rate offers natural motion rendering for a more realistic viewfinder experience.

Rear 3.2″ LCD touchscreen features a vari-angle design that benefits front-facing recording, such as for vlogging needs, as well as working from high and low shooting angles.

Top status LCD can be used to quickly review camera and shooting settings.

CFexpress Type B and SD UHS-II memory card slots are featured for flexible storage needs; the CFexpress slot is ideal for 8K video and high-speed, high-resolution burst shooting needs while the SD card slot retains a familiar form factor for wide compatibility.

Both a 3.5mm headphone and a 3.5mm external microphone port are featured for improved audio monitoring and recording capabilities.

Refined body design incorporates four distinct control dials across the body for intuitive tactile control and a joystick controller is used on the back of the camera for fast and intuitive focus point selection and menu navigation.

Durable, weather-sealed body design is built to handle tough working conditions and inclement weather.

Both 5 GHz and 2.4 GHz Wi-Fi bands are available for fast file transferring to a mobile device and Bluetooth is also available to provide constant device connection via the Canon Camera Connect app.

RF 24-105mm f/4L IS USM Lens

Included with the camera body is the versatile RF 24-105mm f/4L IS USM lens; a standard zoom covering wide-angle to portrait-length focal lengths. Its f/4 constant maximum aperture maintains consistent performance throughout the zoom range and suits working in a variety of lighting conditions. An Image Stabilizer also suits photographing in low-light by compensating for the effects of camera shake to result in sharper imagery when shooting handheld. Benefitting both stills and video applications, it also has an Ultrasonic Motor that delivers quick, quiet, and precise autofocus performance along with full-time manual focus override.

Canon RF 600mm f/11 IS STM Overview

An impressive and incredibly unique super-telephoto, the Canon RF 600mm f/11 IS STM is an especially compact and lightweight lens considering its long focal length. Featuring a retractable design and a fixed f/11 aperture, this lens’s sleek profile makes handheld super-tele shooting a very real possibility, and optical image stabilization further helps to achieve sharp imagery when working in difficult lighting conditions. Also contributing to the reduced size is a distinct optical layout, which uses gapless dual-layer diffractive optics instead of multiple heavier individual elements, which also effectively controls color fringing and chromatic aberrations for high clarity. Complementing this design is an STM stepping motor that delivers quick and quiet autofocus performance that is suitable for both stills and video needs. Additionally, a Control Ring is also integrated into the lens design for intuitive control over exposure settings from the lens itself. If you need more reach, the 600mm is compatible with the 1.4x and 2x RF Extenders for an effective focal length of 840mm or 1200mm, respectively.

Super-telephoto prime is designed for use with full-frame Canon RF-mount mirrorless digital cameras.

Fixed f/11 aperture contributes to the sleek and portable form factor as well as a balanced mixture of depth of field and sharpness.

Gapless dual-layer diffractive optics contribute to a marked reduction in chromatic and spherical aberrations as well as benefit the design of a relatively compact and lightweight lens.

Retractable/extendable design, with a locking lens barrel, offers an impressively compact form factor considering the super-telephoto design.

An Optical Image Stabilizer helps to minimize the appearance of camera shake by up to five stops to better enable working in low-light conditions and with slower shutter speeds.

STM stepping motor offers fast, quiet, smooth, and accurate autofocus performance that is ideal for video recording as well as still shooting.

Configurable Control Ring can be used to adjust a variety of exposure settings, including aperture, ISO, and exposure compensation.

Compatible with optional Extender RF 1.4x and Extender RF 2x teleconverters to further increase the effective focal length.
