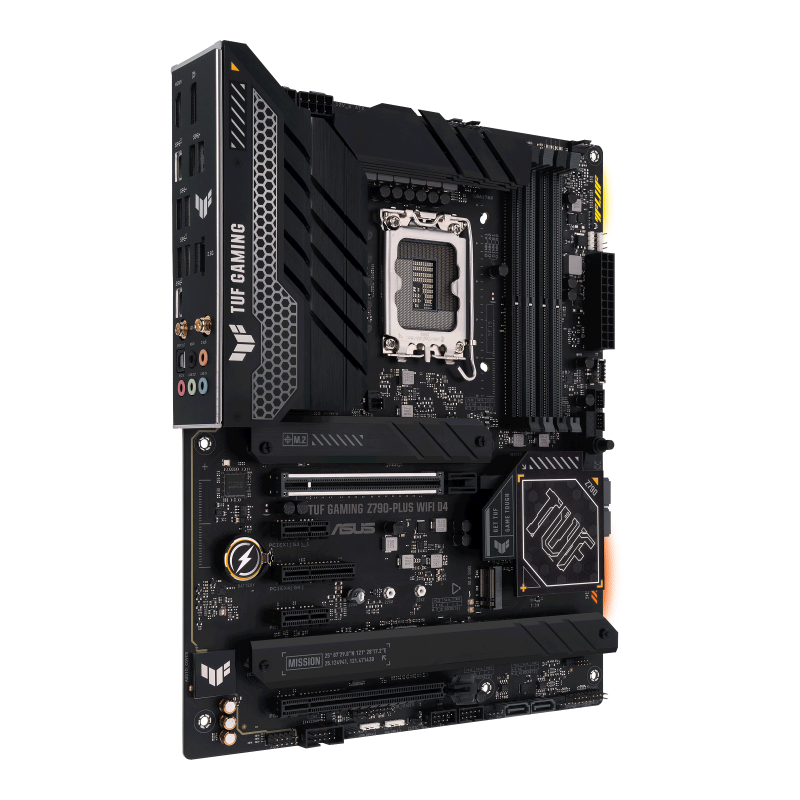

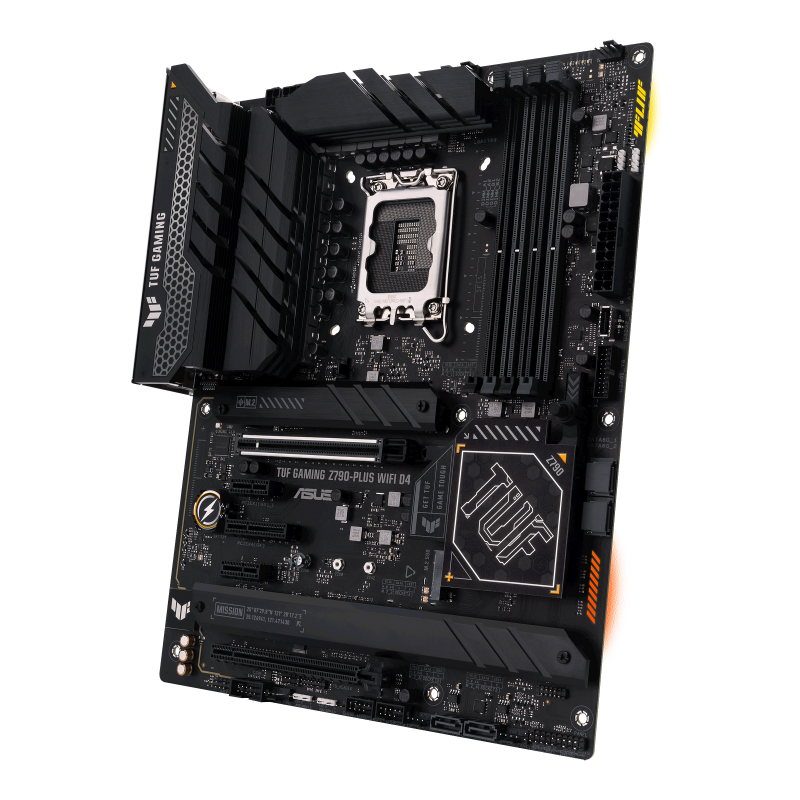

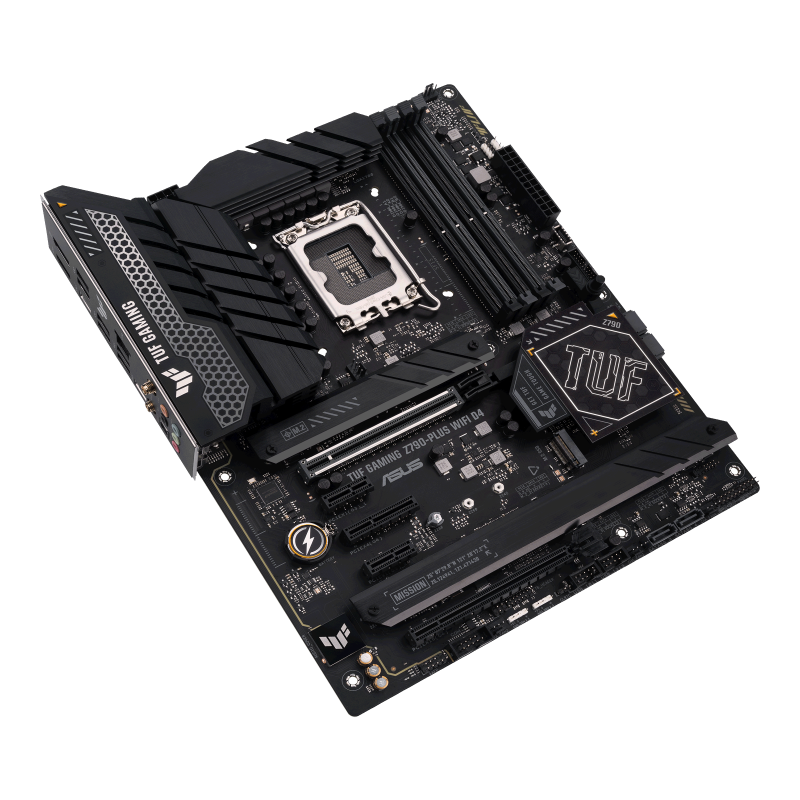

TUF GAMING
Z790-PLUS WIFI D4

TUF GAMING Z790-PLUS WIFI D4 takes all the essential elements of the latest Intel^® processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. Aesthetically, this model incorporates an embossed nameplate and honeycomb design elements to reflect the dependability and stability that defines the TUF GAMING series.

16+1 DrMOS power stages (rated 60A) with enlarged VRM heatsinks

PCIe 5.0 for graphics cards

DDR4 memory module support

USB 3.2 Gen 2x2 Type-C and a front-panel USB 3.2 Gen 2 Type-C header

PCIe Q-Release

2.5 Gb Ethernet

WiFi 6

AI Cooling II

Two-Way AI Noise Cancelation

SPEC OVERVIEW

Intel Socket LGA1700 for 13th Gen Intel Core Processors

Expansion Slots

» 1 x PCIe 5.0 x16 SafeSlot
» 1 x PCIe 4.0 x16 Slot (max @x4)
» 1 x PCIe 4.0 x4
» 2 x PCIe 3.0 x1

16+1 DrMOS Power Stages (60A)

4 x DIMM
» DDR4 5333 (OC)
» Dual Channel
» OptiMem II

4 x M.2 Slots
» 1 x M.2 2280 PCIe 4.0 X4
» 2 x M.2 22110 PCIe 4.0 X4
» 1 x M.2 2280 PCIe 4.0 X4 & SATA Modes

VRM Heatsinks

Two M.2 Heatsinks for Three M.2 Slots

CPU / CPU OPT Fan Headers & AIO Pump Header

Chipset Heatsink

4x Chassis Fan Headers

Realtek S1220A Codec
Exclusive DTS Audio Processing
» TUF Gaming Audio Cover
» Audio Shielding
» Dedicated Audio PCB Layers
» Premium Audio Capacitors

Aura Edge Lighting

3 x 3-pin Addressable Gen2 RGB Header
1 x 4-pin Aura RGB Header

HDMI Port
DisplayPort

1 x USB 3.2 Gen 2x2 Type-C Port
2 x USB 3.2 Gen 1 Ports

2 x USB 3.2 Gen 1 Ports

2 x USB 3.2 Gen 2 Ports
Intel 2.5Gb Ethernet

1 x USB 3.2 Gen 2 Type-C Port

WiFi 6

Optical S/PDIF Out Port

5 x Audio Jacks

1 x Front USB 3.2 Gen 2 Type-C^® Port

1 x Front USB 3.2 Gen 1 Header

2 x Front USB 2.0 Headers

Thunderbolt Header

Insane $5000 Gaming PC Build 2022! ???? [RTX 4090 & Deepcool Quadstellar!

We have secured a bunch of Z790 boards from ASUS to go over some things you should consider before buying, so you have all the features you need and leave the ones you do

The ASUS TUF Gaming Z790-PLUS WIFI D4 is a good-looking motherboard with all the features that one would ever need for a modern Intel 13th generation Raptor Lake gaming PC. With features such as PCIe 5.0 support for a graphics card, 2.5 Gigabit Ethernet as well as WIFI 6, all while providing support for DDR4 memory that would go a long way in lowering the costs of building a PC with this board,

The new ASUS Z790 motherboards for Intel's Core i9-13900K CPU and more

The ASUS TUF Gaming Z790-PLUS WIFI D4 is a solid, well-built product with full support for all the features of the new Intel processors. Performance is very good and there are no problems with too high temperatures, thanks to the excellent thermal design.

INTELLIGENT CONTROL

The TUF GAMING Z790 motherboards pack flexible tools to tune every aspect of your system, enabling performance tweaks to expertly match the way you play.

AI Cooling II

Balance the thermals and acoustics of any build with a single click. An ASUS-exclusive algorithm slashes unnecessary noise while running a quick stress test, and then it monitors CPU temperatures to dynamically adjust fans to optimal speeds.

All-Around Energy Efficiency

The Power Saving function contains several settings that can easily optimize power consumption and maximize energy savings. You can enable a CPU power limit, darken Aura lighting, and set the fan profile to a power saving mode. You can also toggle the Power Saver plan that is built into Microsoft Windows.

UEFI BIOS

The renowned ASUS UEFI BIOS provides everything you need to configure, tweak and tune your system. It offers intelligently simplified options for PC DIY beginners and comprehensive features for seasoned veterans.

Search Function

Quickly and easily find the option or setting you need.

ASUS User Profile

Transfer configuration settings between different BIOS versions, or share them with friends.

Advanced Tuning for Serious Tweakers

An intuitive Advanced mode offered via the UEFI lets you take complete control. A built-in search feature makes it easy to find options, and various advanced functions let you intelligently make nuanced adjustments so you can dial in performance just the way you want.

Search Function

Quickly and easily find the option or setting you need.

ASUS User Profile

Transfer configuration settings between different BIOS versions, or share them with friends.

Advanced Tuning for Serious Tweakers

An intuitive Advanced mode offered via the UEFI lets you take complete control. A built-in search feature makes it easy to find options, and various advanced functions let you intelligently make nuanced adjustments so you can dial in performance just the way you want.

Intuitive Graphical Fan Control

Fine-tune individual fan settings simply by dragging a curve with the mouse.

Aura On/Off Mode (Stealth)

Easily enable or disable Aura RGB lighting or every onboard LED, for a subdued aesthetic touch.

Quick and Simple Setup

EZ mode displays vital settings and stats, and it offers guided wizards, drag-and-drop functionality, and one-click application of important settings — all to help you get your rig up and running in no time.

Intuitive Graphical Fan Control

Fine-tune individual fan settings simply by dragging a curve with the mouse.

Aura On/Off Mode (Stealth)

Easily enable or disable Aura RGB lighting or every onboard LED, for a subdued aesthetic touch.

Quick and Simple Setup

EZ mode displays vital settings and stats, and it offers guided wizards, drag-and-drop functionality, and one-click application of important settings — all to help you get your rig up and running in no time.

Armoury Crate

The ASUS-exclusive Armoury Crate software centralizes control of all supported gaming products. A single intuitive interface lets you customize RGB lighting for all compatible devices and link them to Aura Sync for unified illumination. It also displays information from, and enables control of, a growing hardware ecosystem. Armoury Crate also enables easy product registration and features a news section to keep you in touch with the gaming community.

ROCK-SOLID PERFORMANCE

With upgraded power delivery and comprehensive cooling options to fuel the latest Intel CPUs, plus support for DDR4 memory and PCIe 4.0 storage, the TUF GAMING Z790-PLUS WIFI D4 is the perfect foundation for your next Intel battle rig.

DrMOS Power Stages

16+1 power stages are each rated to handle 60 amperes, combining high-side and low-side MOSFETS and drivers into a single package to deliver power, efficiency and stable performance for all compatible Intel processors.

Six-Layer PCB Design

The multi-layered printed circuit board design quickly dissipates heat around the voltage regulators to improve overall system stability and provide the CPU with more overclocking headroom.

6layers

8+4 Pin ProCool Power Connectors

Compared to most power inputs, ASUS ProCool connectors are built to tight specifications to ensure full contact with PSU power cables. The resulting lower impedance helps prevent hotspots and connector failure.

Enhanced Solid Pin

10A

Last-gen Hollow Pin

7A

42

UP TO

%

IMPROVEMENTS

*The theoretical value is for reference only.

TUF Components

TUF Chokes

Certified military-grade TUF chokes deliver rock-solid power to the CPU, improving system stability.

TUF Capacitors

The TUF 5K black metallic capacitors provide 52% wider temperature tolerance and a 2.5X-longer lifespan than standard motherboard capacitors.

52 %

Temperature

2.5 x

Lifespan

Digi+ VRM

The integrated Digi+ voltage-regulator module (VRM) is one of the finest in the industry, optimized for ultra-smooth and ultra-clean power delivery to the CPU at all times.

DRAM Overclocking Performance

DDR4 OC 5333

Improvements to trace routing design provide the latest Intel processors with enhanced access to memory bandwidth. ASUS OptiMem II technology carefully maps memory signal pathways across different PCB layers to reduce path distance, and it adds shielding zones that significantly reduce crosstalk.

PCIe 4.0 Support

The four PCIe 4.0 M.2 slots support up to two 22110 devices and also provide NVMe SSD RAID support for incredible performance potential. Create a RAID configuration with up to four PCIe 4.0 storage devices to enjoy the fastest data transfer speeds.

Bandwidth (Gbps)

PCIe 4.0x4

64

PCIe 3.0x

32

*Actual transmission speed will be lower than theoretical maximum speed.

Cooler By Design

The TUF GAMING Z790-PLUS WIFI D4 is armed with an enlarged VRM heatsink, while three M.2 slots and the PCH feature heatsinks that provide the perfect balance of mass and surface area for heat dissipation.

Enlarged VRM Heatsink

The extensive surface area of this heatsink covers the VRMs and chokes to improve thermal performance.

Comprehensive Fan Controls

TUF GAMING Z790 motherboards feature comprehensive fan controls that can be configured via the Fan Xpert 4 utility in Armoury Crate or via the award-winning ASUS UEFI BIOS.

Each header can be set to monitor and react to three user-configurable thermal sensors for workload-based cooling, and all settings can be easily managed by Fan Xpert 4 or via the UEFI.

Connectivity

The TUF-GAMING Z790-PLUS WIFI D4 reaches new heights of performance potential with the latest version of PCI Express, while an arsenal of USB ports includes three Type-C connections, and Thunderbolt 4 expands compatibility and bandwidth even further.

USB 3.2 Gen 2x2 Type-C^®

PCIe 5.0

Front USB 3.2 Gen 2 Type-C^®

Thunderbolt™(USB4^®) Support

EASY PC DIY

The TUF GAMING line offers easy setup for all builders. The TUF GAMING Alliance ecosystem grants compatibility, while Armoury Crate has Fan Xpert 4, hardware info, Two-Way AI Noise Cancelation, RGB options and peripheral settings. This platform has intuitive tools to build and optimize dream rigs.

Build With Confidence

TUF GAMING Alliance is a collaboration between ASUS and trusted PC component brands to ensure compatibility across a wide range of parts, such as PC cases, power supplies, CPU coolers, memory kits and more. With new partnerships and components being added regularly, the TUF GAMING Alliance will continue to grow even stronger.

SafeSlot & SafeDIMM

SafeSlot is a reinforced metal sheath added to a PCIe slot to keep a card firmly installed. Because PCIe 5.0 is two times faster than PCIe 4.0, ASUS enhanced SMT manufacturing processes for the faster SafeSlot―all to ensure users get the highest-possible data speeds. In addition, the ASUS SafeDIMM sheath is added to support and protect memory modules on select ASUS motherboards, empowering you to insert modules with speed, accuracy and confidence.

ESD Guards

ESD Guards prolong the life of components while preventing damage from electrostatic discharge, providing protection for up to +/- 10 kV of air discharge and +/- 6 kV of contact discharge — greatly surpassing the respective industry standards of +/- 6 kV and +/- 4 kV. Surface-mounted TVS diodes in a dual in-line package help protect your PC from voltage spikes.

USB Connectors

Additional on-circuit ESD transient-voltage-suppression

TUF LANGuard

TUF LANGuard is a military-grade innovation that integrates advanced signal-coupling technology and premium surface-mounted capacitors to improve throughput, protecting the motherboard from lightning strikes and static electricity.

2.5X HIGHERSURGE TOLERANCE

Line to Ground

15KV

6KV

0

10

20

 TUF LANGuard

 Traditional LAN port

*ESD result is undertaken by individual LANGuard

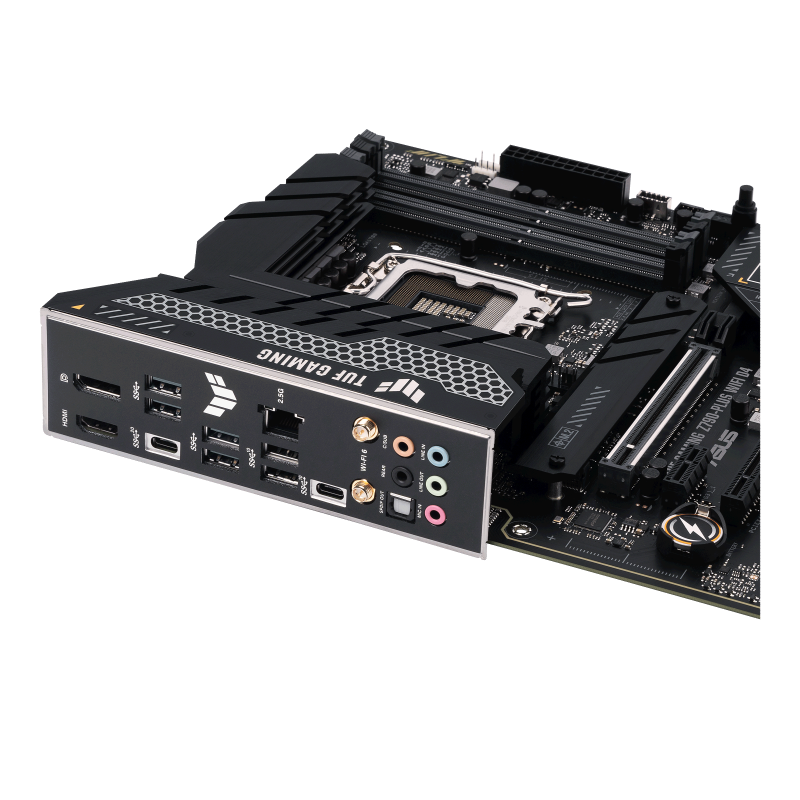

Stainless Steel Back I/O Panel

TUF GAMING motherboards have a corrosion-resistant stainless steel back I/O panel bonded with chromium oxide to provide a lifespan that’s three times longer than traditional panels. With this protective feature, TUF GAMING motherboards passed 72-hour salt fog testing, while other brands only passed 24-hour testing.

3 x

Longer Lifespan

72 hr

Salt Fog Testing

• Q-Release
• M.2 Q-Latch
• Removable Captive Screws
• Q-LED

PCIe Q-Release

A physical button unlocks the first PCIe slot’s security latch with one tap, greatly simplifying the process of detaching a PCIe card from the motherboard when it’s time to upgrade to a new GPU or other compatible device.

M.2 Q-Latch

The innovative Q-Latch makes it easy to install or remove an M.2 SSD without the need for specific tools. The design employs a simple locking mechanism to secure the M.2 SSD, neatly eliminating the need for screws.

Removable
Captive Screws

Specialized M.2 slot screws reduce the risk of dropping or losing a screw somewhere in your case during M.2 heatsink removal.

Q-LED

The on-board Q-LED troubleshooting lights give PC builders a quick indicator to confirm that key components ― CPU, RAM, graphics card, storage devices ― are functioning normally during startup.

IMMERSIVE GAMING

TUF GAMING Z790 motherboards provide a feature-packed high-performance gaming package, with ultrafast networking for smoother online gameplay, pristine audio with positional cues for FPS Gaming, and onboard RGB lighting that syncs with attached gear to personalize your gaming atmosphere.
