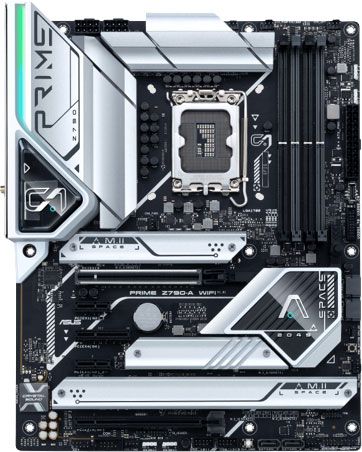

Asus Prime Z790-A WIFI (LGA 1700) ATX MotherBoard

SKU
U59235
-23%
Asus
Special Price Rs 123,499.00 was Rs 159,999.00
Out of stock

kv_background_lightkv_background_lightkv_background_darkPRIME Z790-A WIFI provides users and PC DIY builders a range of performance tuning options via intuitive software and firmware features.

PRIME Z790-A WIFI

Z790-A WIFI

ASUS Prime series motherboards are expertly engineered to unleash the full potential of 13th Gen Intel® Core™ Processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME Z790-A WIFI provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features.

The ASUS PRIME Z790-A WIFI offers this all in a sleek, futuristic-looking package centered around a spaceship design aesthetic, with a silver-toned nameplate and chipset cover.


icon-intel

16 + 1 Teamed Power Stages (60A) with Enlarged Heatsinks

16 + 1 Teamed Power Stages (60A) with Enlarged Heatsinks

Gen 5 Slot for Graphics Card

Gen 5 Slot for Graphics Card

AEMP II for Ultimate DDR5 Performance

AEMP II for Ultimate DDR5 Performance

USB 3.2 Gen 2x2 Type-C® & Thunderbolt (USB4®) Support

USB 3.2 Gen 2x2 Type-C® & Thunderbolt (USB4®) Support

2.5 Gb Ethernet

2.5 Gb Ethernet

WiFi 6E

WiFi 6E

Intelligent Control

Intelligent Control

Al Cooling II

Al Cooling II

Customization

Customization



All specs of the PRIME Z790-A WIFI motherboard

Intel Socket LGA1700 for 13th Gen Intel® Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
Expansion Slots

1 x PCIe 5.0 x16 SafeSlot
1 x PCIe 4.0 x16 slot (supports x4 mode)
1 x PCIe 4.0 x4 slot
2 x PCIe 3.0 x1 slots
16 + 1 Teamed Power Stages (60A)
4 x M.2 Slots
2 x M.2 22110 (PCIe 4.0 x4 mode)
1 x M.2 2280 (PCIe 4.0 x4 mode)
1 x M.2 2280 (PCIe 4.0 x4 & SATA mode)
VRM Heatsinks
All M.2 Slots with Dedicated Heatsinks
CPU / CPU OPT Fan Headers & AIO Pump Header
Chipset Heatsinks
4x Chassis Fan Headers
Aura Sync Shroud RGB LED
Crystal Sound 3

Realtek S1220A 7.1 Codec
DTS:X Ultra
Two-Way AI Noise Cancellation
1 x 4-pin Aura RGB Header
1 x 3-pin Aura Addressable Gen 2 RGB Header
2 x 3-pin Aura Addressable Gen 2 RGB Headers
DisplayPort
HDMI
1 x USB 3.2 Gen 2x2 Type-C
4 x USB 3.2 Gen 1 ports (4 X Type-A)
Intel 2.5Gb Ethernet
3 x USB 3.2 Gen 2 ports
(2 x Type-A, 1 x Type-C®)
Wi-Fi 6E
3 x Audio Jacks
1 x Front USB 3.2 Gen 2 Type-C
1 x Front USB 3.2 Gen 1 Header
1 x Thunderbolt (USB4) Header
2 Front USB 2.0 headers

FLEXIBILITY

Comprehensive controls form the foundation of the ASUS PRIME series. The PRIME Z790-A WIFI motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity.

Intelligent Control

ASUS Intelligent Control makes your PC smart. Along with taking care of complex tuning and dynamically optimizing essential aspects of your system, it offers intelligently simplified options for newcomers to PC DIY, as well as more comprehensive features for seasoned veterans.

UI of Power Saving settings

All-Around Energy Efficiency

The Power Saving function contains several settings can easily optimize power consumption and maximize energy savings. You can enable a CPU power limit, darken Aura lighting, and set the fan profile to a power saving mode. You can also toggle the Power Saver plan that is built into Microsoft Windows.

COOLING

PRIME Z790-A WIFI motherboard is engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads.

Heatsinks



background_decoration

The PRIME Z790-A WIFI motherboardThe PRIME Z790-A WIFI motherboard offers M.2 heatsinks.Heatsink with removable captive screws

Heatsink with removable captive screws

Removable captive screws reduce risk of drops or loss during heatsink removal.

M.2 Heatsinks


Three M.2 heatsinks cover four M.2 slots, warding off throttling that can occur with M.2 storage during sustained transfers.

VRM Heatsinks and Thermal Pads



The extensive surface area of the massive heatsinks cover the VRMs and chokes to improve heat dissipation. Together with specially engineered thermal pads, they improve heat transfer from the MOSFETs and chokes for better cooling performance.

Cooler by Design

PRIME Z790-A WIFI features comprehensive cooling controls that are configurable via Fan Xpert 4 software or via the UEFI BIOS

The PRIME Z790-A WIFI motherboard supports Multiple Temperature Sources.



PERFORMANCE

The PRIME Z790-A WIFI motherboard is built to handle the high core counts and bandwidth demands of 13th Gen Intel® Core™ Processors. ASUS Z790 motherboard provides all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible data transfer options.

Robust Power Design

Stable power is essential to extract every last bit of performance out of Intel® processors. The PRIME Z790-A WIFI is geared to cater to the demands of these high-core-count CPUs.

ProCool-Connectors icon

ProCool Connectors

Proprietary connectors augment the motherboard's link to the PSU with 8+8 pin connectors that pass 12 volts of power directly to the processors. Each jack features solid pins that can handle more current than hollow-pin connectors.

The PRIME Z790-A WIFI motherboardThe PRIME Z790-A WIFI motherboard features ProCool Connectors.

CUSTOMIZATION

The PRIME Z790-A WIFI motherboard adds the nuanced details that improve every experience, from exclusive codecs that provide pristine audio quality to intuitive RGB lighting controls that let you customize your system to create a uniquely personal look.

Audio

Two-Way AI Noise Cancelation

This utility leverages a massive deep-learning database to reduce background noise from the microphone and incoming audio, while preserving vocals at the same time. This removes distracting keyboard clatter, mouse clicks and other ambient noises so you can hear and be heard with crystal clarity while gaming or in calls.

500M

Deep-learning database

Audio

Input/output

High

Fidelity

Minimal

Performance Impact

Hear the Difference

AI ON

AI OFF

BrandAsus
Warranty7 Day Replacement
ShippingSame Day From Lahore
