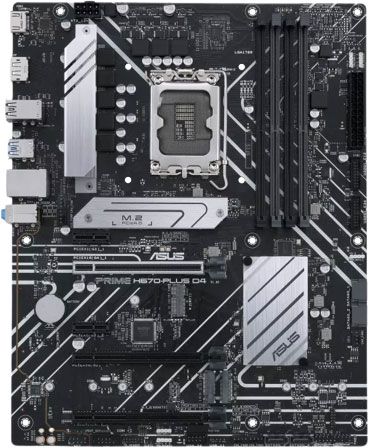

Asus PRIME H670-PLUS D4 (LGA 1700) ATX Motherboard
SKU
U57552
Category: Motherboard
ASUS Prime series motherboards are expertly engineered to unleash the full potential of 12th Generation Intel® processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, Prime H670 provides users and PC DIY builders a range of performance tuning options via intuitive software and firmware features.
HDMI® port
DisplayPort
2 x USB 3.2 Gen1 ports(Type-A)
2 x USB 2.0 ports(Type-A)
1 x USB 3.2 Gen 2 Type-C®
1 x USB 3.2 Gen1 port(Type-A)
2 x USB 3.2 Gen2 ports(Type-A)
2.5G Ethernet
3 x Audio Jacks
Expansion slots
・1 x PCIe 4.0 x16 SafeSlot core+
・1 x PCIe 4.0 x16
・1 x PCIe 3.0 x16
・2 x PCIe 3.0 x1
8 pin ProCool connector
1 x AURA RGB header
1 x AURA Addressable Gen 2 header
Intel® Socket LGA1700 for 12th Gen Intel® Core™,Pentium® Gold and Celeron® Processors
4 x DIMM
・DDR4 5000 (OC)
・Dual Channel
・OptiMem
2 x USB 3.2 Gen 1 headers
1 x AURA Addressable Gen 2 header
3 x M.2 slots
・1 x M.2 2280 (PCIe 4.0 x4 mode)
・1 x M.2 22110 (PCIe 4.0 x4 mode)
・1 x M.2 2280 (PCIe 4.0 x4 & SATA modes)
1 x AURA Addressable Gen 2 header
2 x USB 2.0 headers
1 x AURA RGB header
FLEXIBILITY
Comprehensive controls form the foundation of the ASUS Prime series. The Prime H670 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity.
5-Way Opitmization
ASUS 5-Way Optimization makes your PC smart. Along with taking care of complex tuning and dynamically optimizing essential aspects of your system, it provides overclocking profiles that are tailored for your rig.
Easy Optimization is an automated tuning utility that enhances overclocking and cooling profiles for your unique system configuration.
A stress test feature allows you to optimize and overclock for CPU- or memory-centric workloads.
EPU
Fan Xpert 2+
Digi+ VRM Control
All-Around Energy Efficiency
The Energy Processing Unit (EPU) automatically optimizes power consumption and maximizes energy savings with Away mode — a smart setting that creates an extreme energy-saving scenario by shutting down unused I/O controllers.
UEFI BIOS
The renowned ASUS UEFI BIOS provides everything you need to configure, tweak and tune your system. It offers intelligently simplified options for PC DIY beginners, as well as comprehensive features for seasoned veterans.
Advanced Tuning for Serious Tweakers
An intuitive Advanced mode offered via the UEFI lets you take complete control. A built-in search feature makes it easy to find options, and various advanced functions let you intelligently make nuanced adjustments so you can dial in performance just the way you want.
Search Function
Quickly and easily find the option or setting you need.
ASUS User Profile
Port configuration settings between different BIOS versions or share them with friends.
COOLING
Prime H670 series are engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads.
Heatsinks
M.2 Heatsink
M.2 heatsink wards off throttling that can occur with M.2 storage during sustained transfers. The heatsink is held in place by captive screws and can be moved to other M.2 slots.
Removable captive screws reduce risk of drops or loss during heatsink removal.
Cooler by Design
Prime H670 series feature comprehensive cooling controls that are configurable via Fan Xpert 2+ software or via the UEFI BIOS.
Multiple Temperature Sources
Each header can dynamically reference three thermal sensors. Fan Xpert 2+ allows you to map the temperature of supported ASUS graphics cards to optimize cooling for GPU- and CPU-intensive tasks.
PERFORMANCE
Prime H670 series is built to handle the additional cores and increased bandwidth of 12th Generation Intel® processors. ASUS H670 motherboards provide all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible transfer options.
Robust Power Design
Stable power is essential to extract every last bit of performance out of 12th Generation Intel processors. Prime H670-PLUS D4 is geared to cater to the demands of these high-core-count CPUs.
ProCool Connector
Proprietary connector augments the motherboard's link to the PSU with 8 pin connector that passes 12 volts of power directly to the processors. Each jack features solid pins that can handle more current than hollow-pin connectors.
Memory
DDR4 5000(OC)
Improvements to trace routing design provide the latest Intel processors with enhanced access to memory bandwidth. ASUS OptiMem technology carefully maps memory signal pathways across different PCB layers to reduce path distance, and it adds shielding zones that significantly reduce crosstalk.
Storage
Three M.2 slots (up to 64 Gbps)
Prime H670-PLUS D4 offers a total of three M.2 slots that support data-transfer speeds of up to 64 Gbps via PCIe® 4.0, enabling quicker boot-up and app load times with OS or application drives.
* Actual transmission speeds will be lower than the theoretical maximum speed.
Connectivity
PCIe® 4.0 Slot
Prime H670 motherboards are designed specifically for 12th Generation Intel® Core™ CPUs and offer PCIe® 4.0 connectivity for the latest GPUs. The wide bandwidth and superfast transmission speeds allow you to create feature-rich builds that can handle high loads effortlessly.
CUSTOMIZATION
Prime H670 series add the nuanced details that improve every experience, from exclusive codecs that provide pristine audio quality to intuitive RGB lighting controls that let you customize your system to create a uniquely personal look.
Personalization
Aura Sync
Outshine the Competition
A well-tuned enthusiast system deserves a matching aesthetic. ASUS Aura offers full RGB lighting control with a variety of functional presets for the built-in RGB LEDs as well as strips and devices connected to the onboard RGB headers — and it can all be synced with an ever-growing portfolio of Aura-capable hardware.
Static
Breathing
Strobing
Rainbow
Color Cycle
Starry Night
Music Effect
Smart
Dark
Adaptive Color
_2d_aura.png)
DIY Friendly
Q-LED
The on-board Q-LED troubleshooting lights give PC builders a quick indicator to confirm that key components ― CPU, RAM, graphics card, storage devices ― are functioning normally during startup.
| Brand | Asus |
|---|---|
| Warranty | 7 Day Replacement |
| Shipping | Same Day From Lahore |
