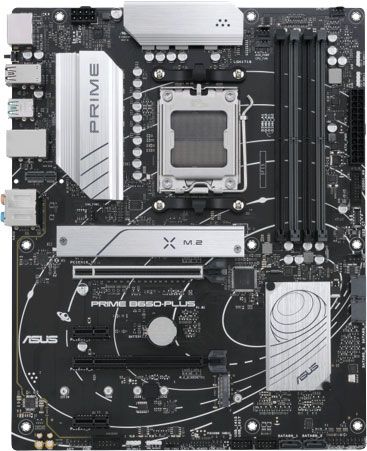

Asus Prime B650 Plus AMD B650 ATX Motherboard
SKU
U60711
Category: Motherboard
Gen 5 Slot for Storage
DDR5 Support
USB 3.2 Gen 2 Type-C
2.5 Gb Ethernet
Intelligent Control
Customization
HDMI®
DisplayPort
BIOS FlashBack™ button
2 x USB 3.2 Gen 1
2 x USB 2.0
1 x USB 3.2 Gen 2 Type-C®
3 x USB 3.2 Gen 2
2.5 Gb Ethernet
Vertical M.2 slot (Key E)
S/PDIF output
5 x Audio Jacks
Expansion Slots
• 1 x PCIe 4.0 x16 (max @x16)
SafeSlot Core+
• 1 x PCIe 4.0 x16 (max @x4)
• 2 x PCIe 4.0 x1
1 x Aura RGB Header
8 pin ProCool connector
3 x Addressable Gen 2 Headers
DDR5 support
• DDR5 6400+(OC)
• OptiMem II
AM5 Socket for AMD Ryzen™ 7000 Series Desktop Processors
1 x Front USB 3.2 Gen 1 Header
1 x Front USB 3.2 Gen 1 Type-C®
2 x M.2 slots
• 1 x M.2 22110 (PCIe 5.0 x4 mode)
• 1 x M.2 22110 (PCIe 4.0 x4 mode)
AMD B650 Chipset
4 x SATA 6Gb/s ports
2 x Front USB 2.0 Headers
1 x Thunderbolt™ (USB4®) Header
FLEXIBILITY
Comprehensive controls form the foundation of the ASUS PRIME series. The PRIME B650 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity.
Intelligent Control
CPU Performance Boost
AMD Precision Boost Overdrive(PBO) pushes the CPU current and voltage budget to opportunistically increase performance. By aggressively tuning the PBO parameters, AMD‘s algorithm can leverage the motherboard’s robust power solution to ramp up performance even higher
COOLING
Prime B650 series are engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads.
Heatsinks
M.2 Heatsink
The M.2 heatsink is flexible, which can take care of the M.2_1 or M.2_2 slot, warding off throttling that can occur with M.2 storage during sustained transfers. The heatsink is held in place by captive screws.
Removable captive screws reduce risk of drops or loss during heatsink removal.
PERFORMANCE
The PRIME B650 series is built to handle the high core counts and bandwidth demands of AMD processors. ASUS B650 motherboard provides all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible data transfer options.
Robust Power Design
Stable power is essential to extract every last bit of performance out of AMD processors. The PRIME B650-PLUS is geared to cater to the demands of these high-core-count CPUs.
ProCool Connectors
Proprietary connectors augment the motherboard's link to the PSU with 8 pin connectors that pass 12 volts of power directly to the processors. Each jack features solid pins that can handle more current than hollow-pin connectors.
CUSTOMIZATION
The PRIME B650 series adds the nuanced details that improve every experience, from exclusive codecs that provide pristine audio quality to intuitive RGB lighting controls that let you customize your system to create a uniquely personal look.
Outstanding Audio
Combined onboard features deliver elevated audio
Intelligent design and premium hardware create audio quality unlike anything you’ve ever experienced.
Audio Shielding
Audio shielding ensures precision analog/digital separation and greatly reduced multi-lateral interference.
Dedicated Audio PCB Layers
Separate layers for left and right tracks ensures both channels deliver consistent, equal quality.
Premium Audio Capacitors
Provides warm, natural, and immersive sound with exceptional clarity and fidelity.
